The Control Status mode is only available
with a Series A (version 3.0) or Series B
HIM.
This mode allows the drive logic mask to be
disabled, thus preventing a Serial Fault
when the HIM is removed with drive power
applied. The logic mask can be disabled
with Series A HIM versions below 3.0 by
using [Logic Mask] as explained on page
3.4.

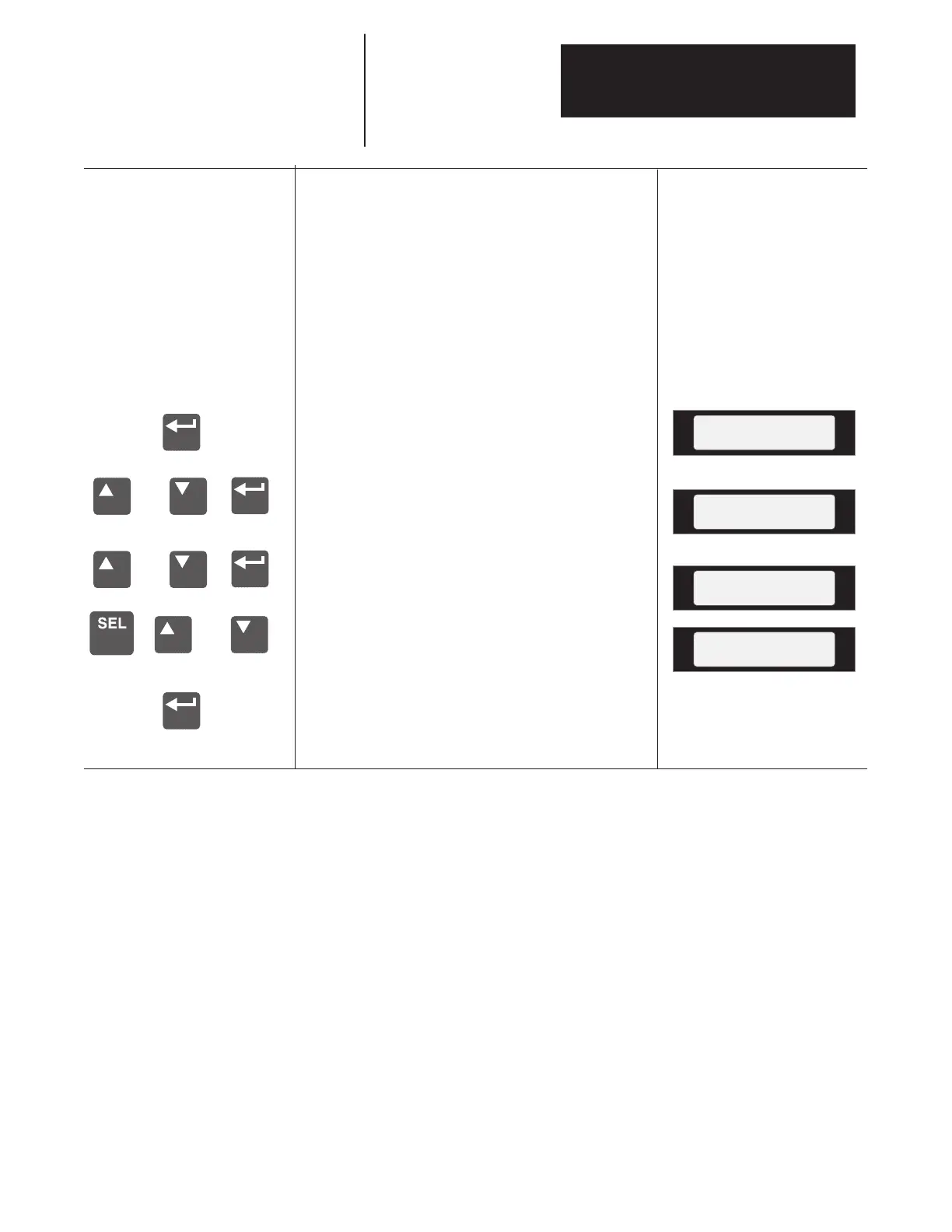

From the Status Display, press Enter (or
any key). “Choose Mode” will be
shown.
Press the Increment (or Decrement) key
until “Control Status” is displayed. Press
Enter.
Select “Control Logic” using the
Increment/Decrement keys. Press Enter.
Press the SELect key, then use the
Increment (or Decrement) key to select
“Disabled” (or “Enable”).
Press Enter. The logic mask is now
disabled (or enabled).
