Chapter 3
Programming Terminals
3–9

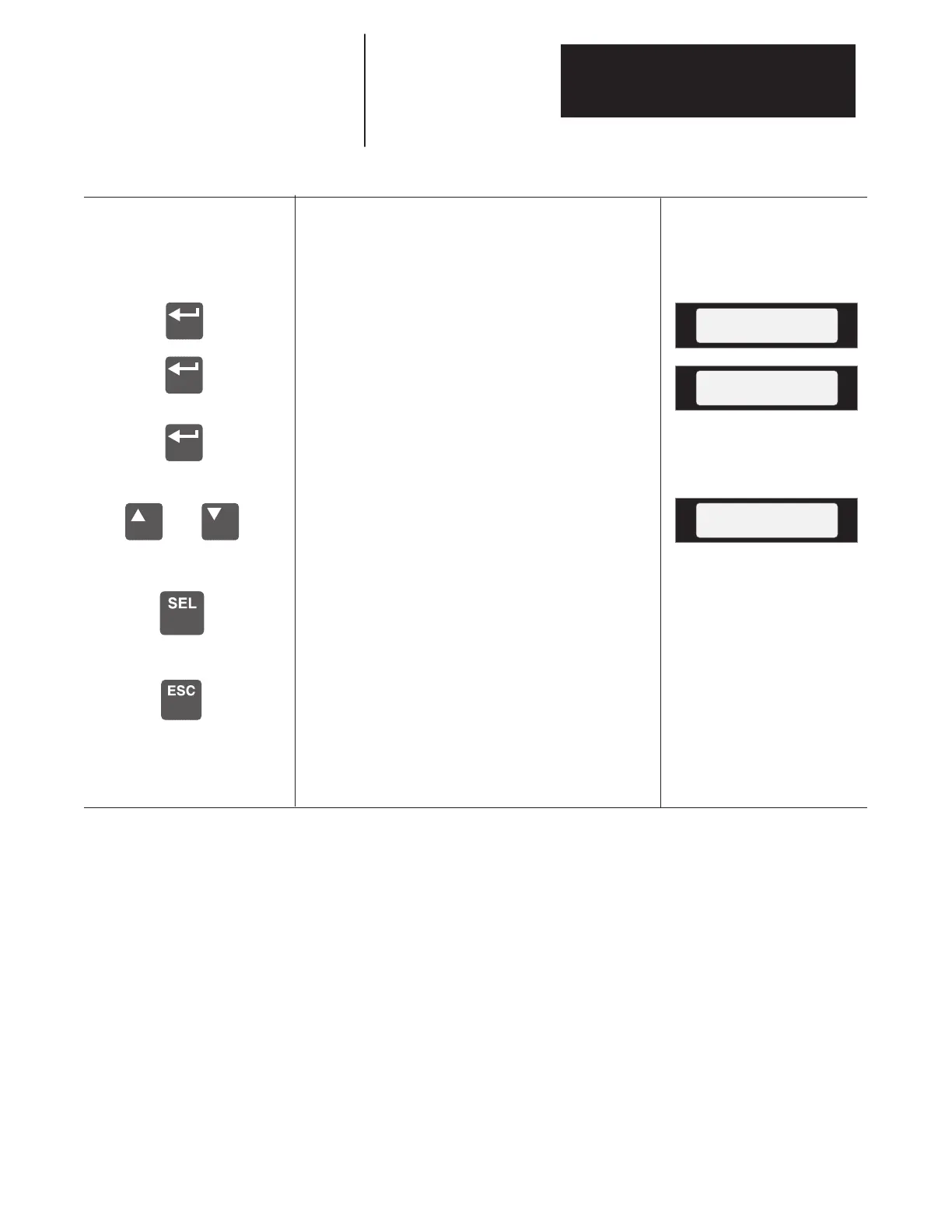

Process Mode
When selected, the Process mode will allow
you to monitor 6 different pre–programmed
processes. 2 of these processes can be
displayed at one time.
Use the Enter key to select the Process
Mode.
Press the Enter key again to access the
Process Variable display.
Press the Enter key again if you wish to
monitor the processes under Process
Variable 1.
Use the Inc/Dec keys to view the six
processes that are currently programmed
on line 1.
To move to the second Process Variable
Line, Press the Select key. This will
allow you to access the six processes
under Process Variable 2.
To return to a previous level press the
Escape key.
Note: HIM Series B Version 1.06 will
allow changing of the 6 process dis-
plays.
Choose Mode
Process
+ 0.00 Freq Cmd
+ 0.00 Vel FB
Process Var 1=1
Process Var 2=2
or
To Next Page
