Chapter 4
Startup
4–6
Startup Configuration Procedures After you have completed all wiring and power up the drive, the parameter
configuration procedure must be completed using one of the Startup
Configuration Procedures (Quick, or Manual). The configuration
procedures used here assumes you have a HIM programming terminal and
a Standard Adapter Board in your Drive. If you are using a different
programming method or a PLC Comm Adapter Board, the configuration
procedure will have to be altered to match your particular setup.
!
ATTENTION: Failure to complete the parameter configuration
could result in injury to personnel, or damage to the drive and
the motor, when attempting to perform the remaining steps in
the Configuration Procedure.
Apply power to the Drive. The HIM display will appear as shown in
Figure 4.2.
!
ATTENTION: During some startup procedures the motor will
rotate. Hazard of personal injury exists due to unexpected starts,
rotation in the wrong direction or contact with the motor shaft.
If possible, uncouple the motor from the load and place a guard
around the motor shaft.

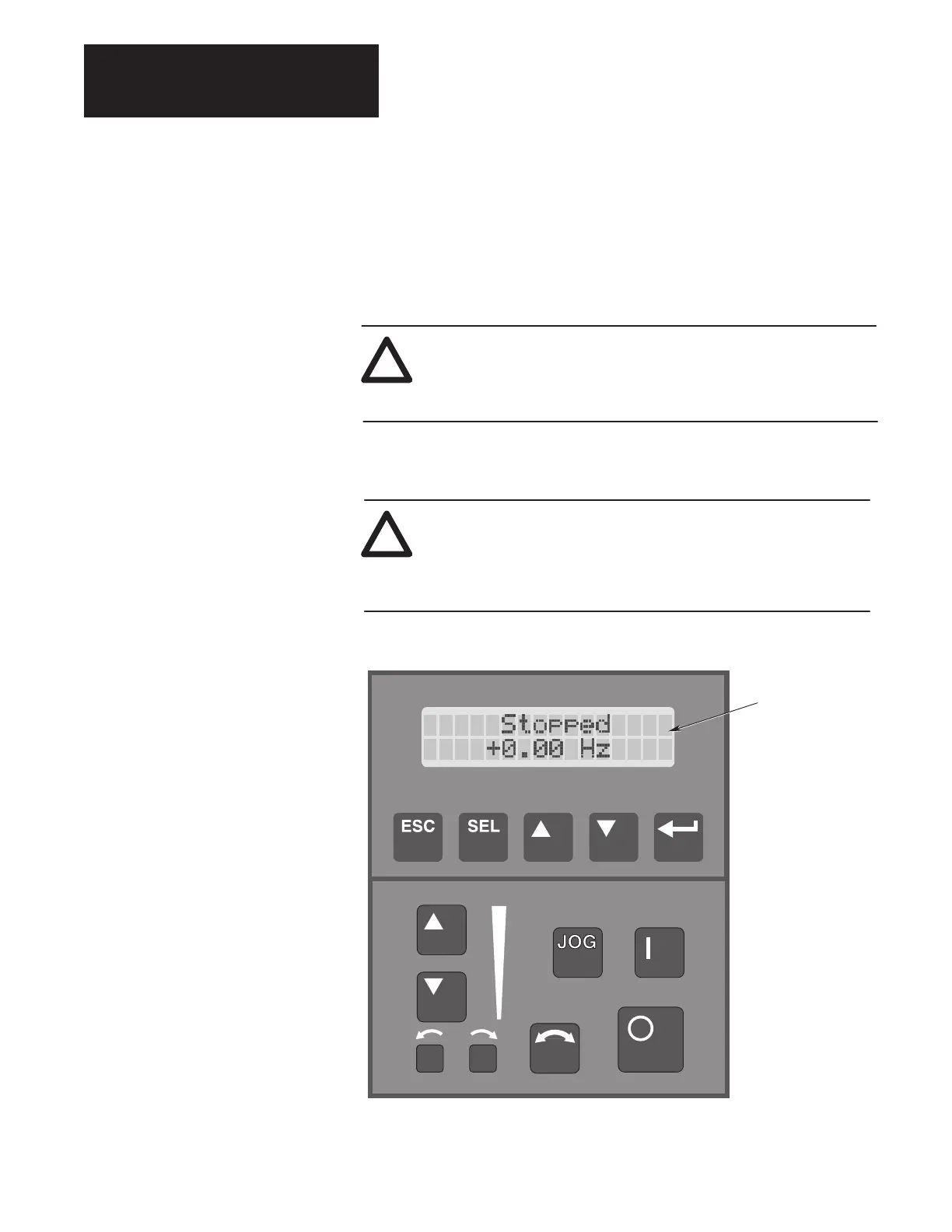

Figure 4.2
HIM Power–Up Display
LCD Display
AB0273A
To Next Page
