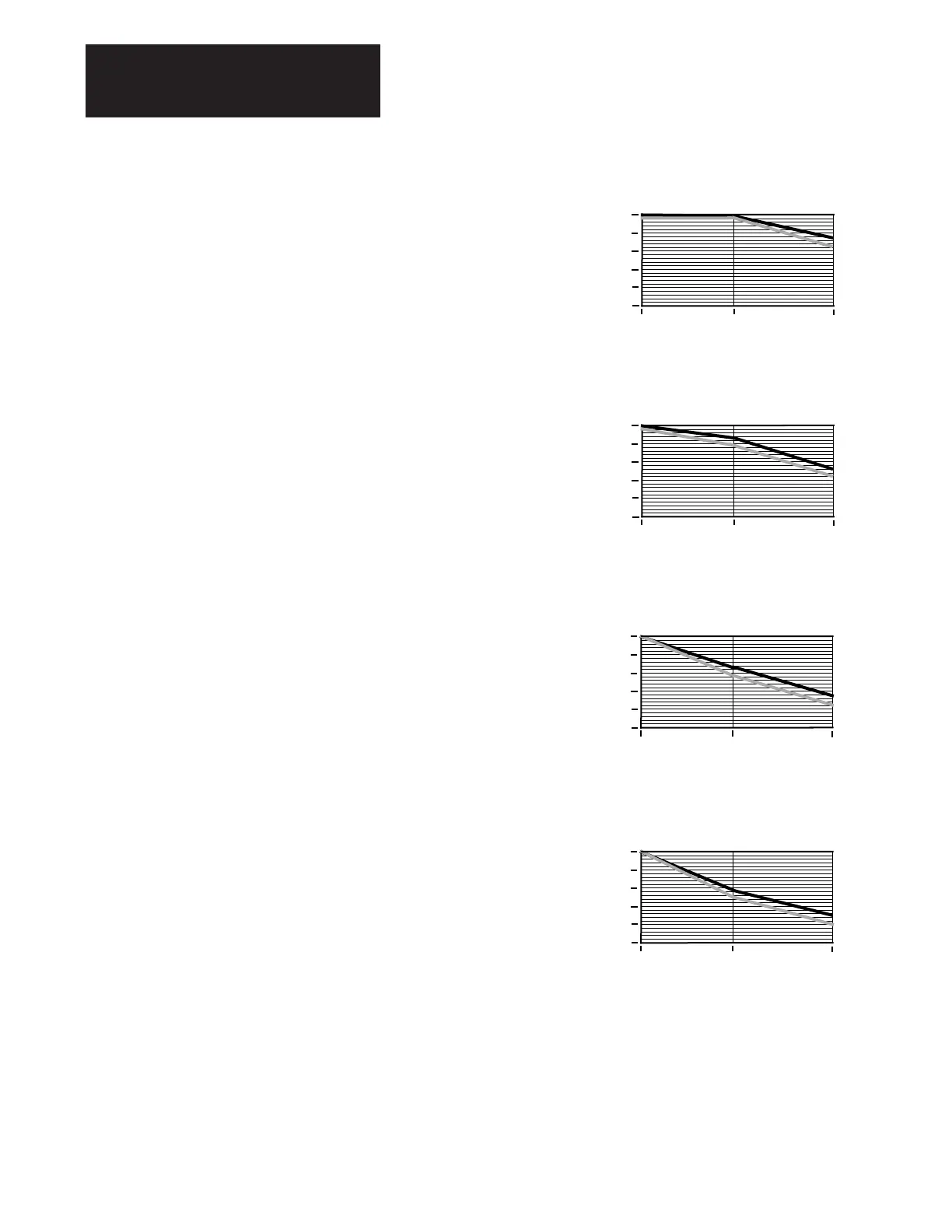

Allen-Bradley 1336 FORCE User Manual

Appendix A
A–14
% of Drive
Rated Amps
Figure D-32
1336E-BP250
Carrier Frequency in kHz
2
60%
90%
70%
80%
100%
4
6
50%
Figure 32
BP 250
% of Drive
Rated Amps
Figure D-33
1336E-BP300
Carrier Frequency in kHz
2
60%
90%
70%
80%
100%
4
6
50%
Figure 33
BP 300
Figure 34
BP 350
% of Drive
Rated Amps
Figure D-34
1336E-BP350
Carrier Frequency in kHz
2
60%
90%
70%
80%
100%
4
6
50%
% of Drive
Rated Amps
Figure D-35
1336E-BP400
Carrier Frequency in kHz
2
60%
90%
70%
80%
100%
4
6
50%
Figure 35
BP 400
