2-6 Install the Module
The module locks into place.
Install the Removable
Terminal Block
A removable terminal block comes with your mounting base
assembly. Pull up on the RTB handle to remove, and replace as
necessary without removing any of the wiring. To reinsert the
removable terminal block, proceed as follows.
1. Insert the RTB end opposite the handle into the base unit.
This end has a curved section that engages with the mounting
base.
2. Rotate the terminal block into the mounting base until it locks
itself in place.
24VDC
Source
Output
Module
Status
Network
Status
1734
OB4E
NODE:
0
1
2
3
44012

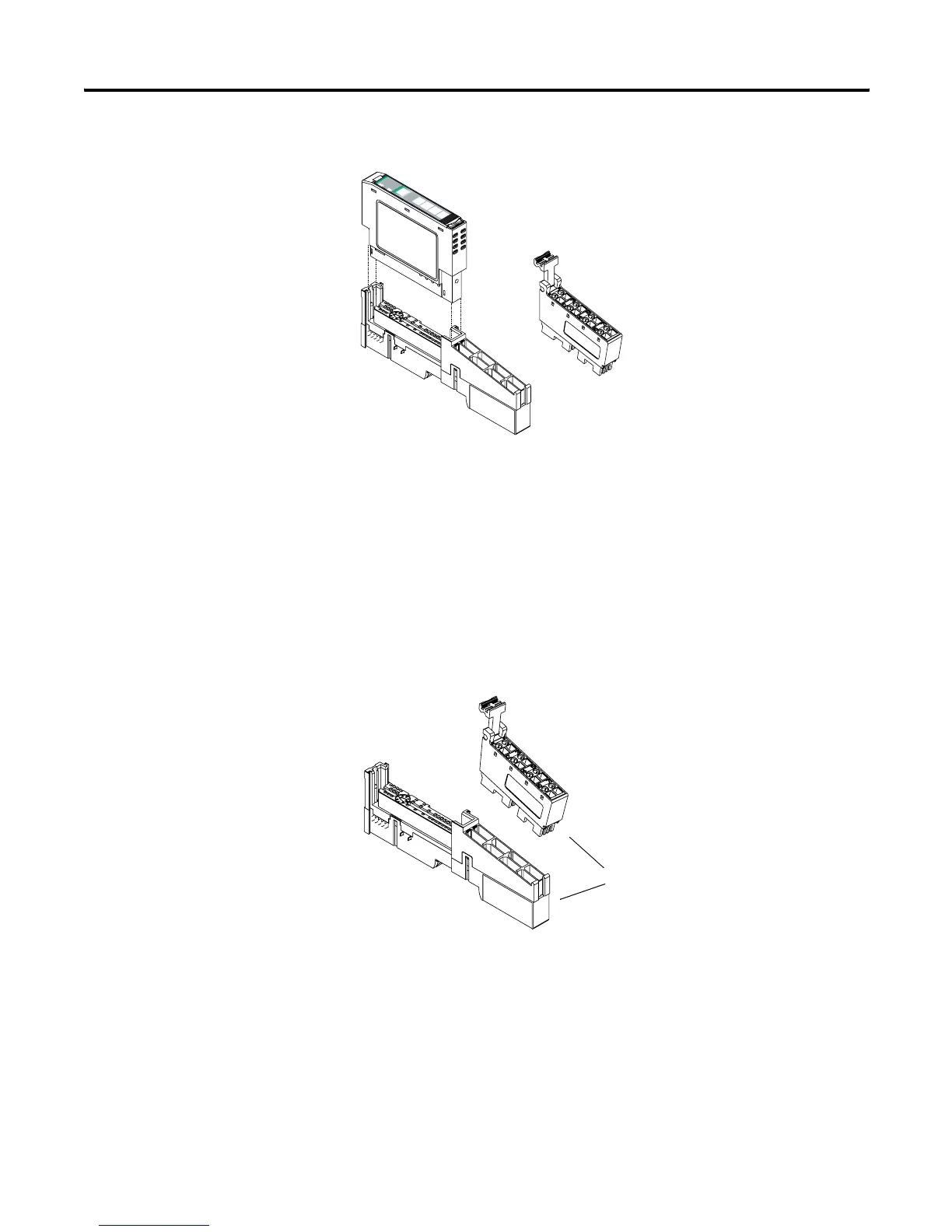

Hook the RTB end into
the mounting base end,
and rotate until it locks
into place.
44011
