4-6 Configure Your Module
Check I/O Status and View
the EDS File

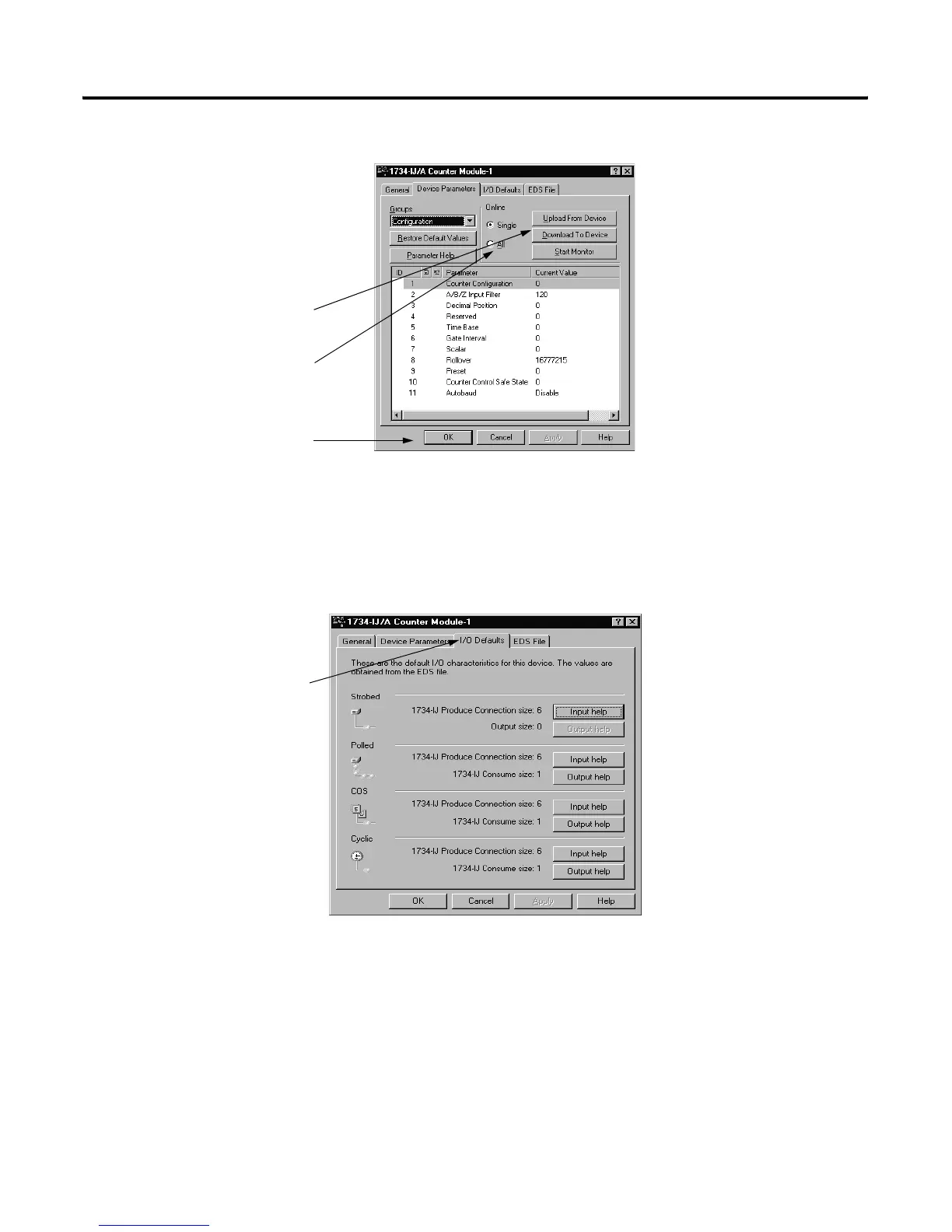

View the I/O defaults setup, and the EDS file by clicking on the
appropriate tab.
To configure your module,
select Configuration and
modify the parameters as
desired for your application.
When complete, download to
your module by clicking on the
Download to Device button.
You can download each
change as you make it using
“Single,” or download all your
changes using “All.”
Click here when finished.
Click on the I/O Defaults tab to display
the default characteristics for this
module.
This dialog shows the input/output
defaults for the four modes. These
are:
Strobe
Polled
Change of state and
Cyclic
