1 Publication 1734-UM006B-EN-P - August 2005
Chapter
6
Troubleshoot the Module
What This Chapter Contains
Read this chapter for information about troubleshooting with the
indicators.
Troubleshoot with the
Indicators

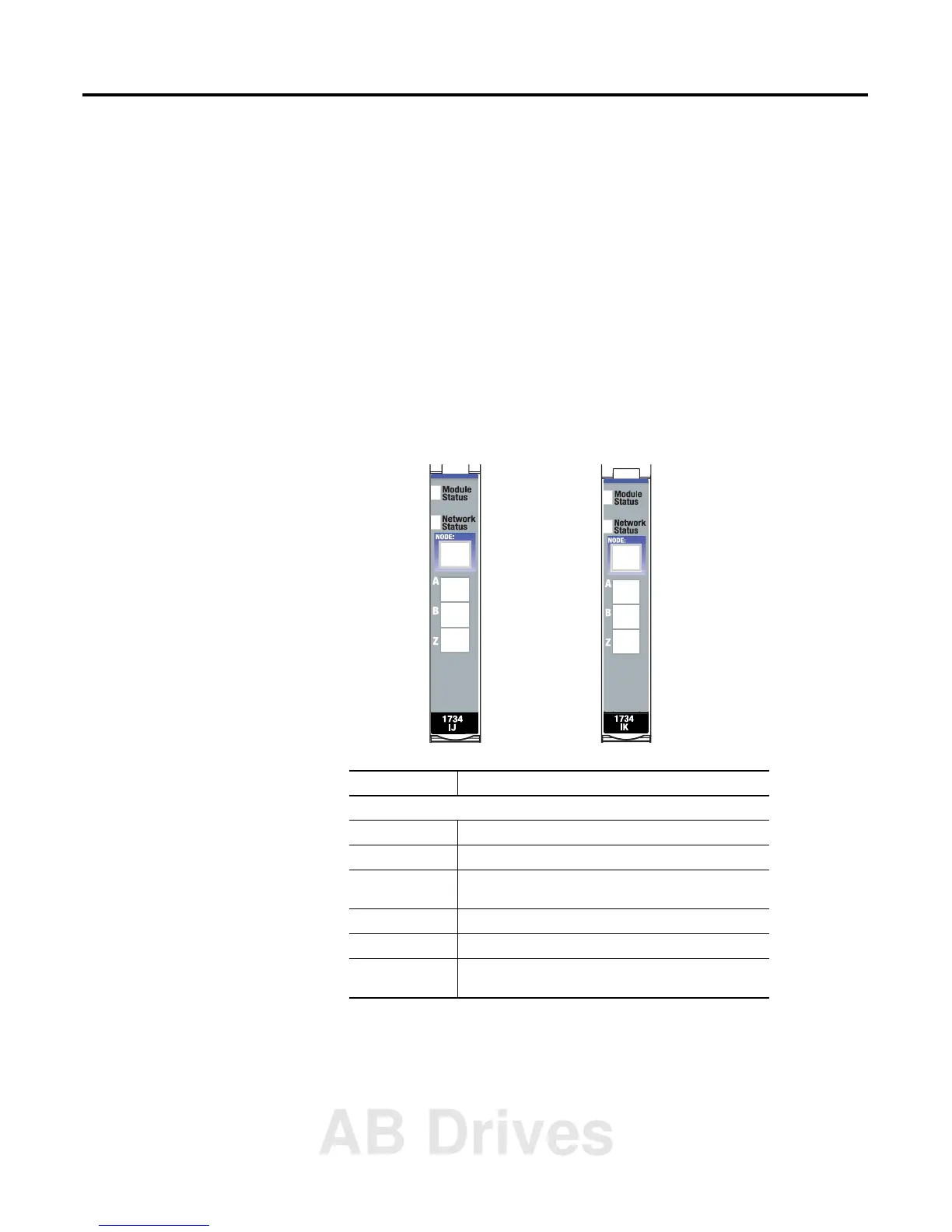

See the figures that show the 5 indicators on the frontplate of each
module. Use these indicators for troubleshooting.
Indication Probable Cause
Module Status
Off No power applied to device.
Green Device is operating normally.
Flashing Green Device needs commissioning due to configuration missing,
incomplete, or incorrect.
Flashing Red Recoverable fault is present.
Red Unrecoverable fault may require device replacement.
Flashing
Red/Green
Device is in self-test.
Module Status
Network Status
Status of Input A
Status of Input B
Status of Input Z
1734-IJ
1734-IK
