Allen-Bradley 5069-IF8 User Manual

Rockwell Automation Publication 5000-UM005B-EN-P - November 2015 119
Calibrate the Module Chapter 7

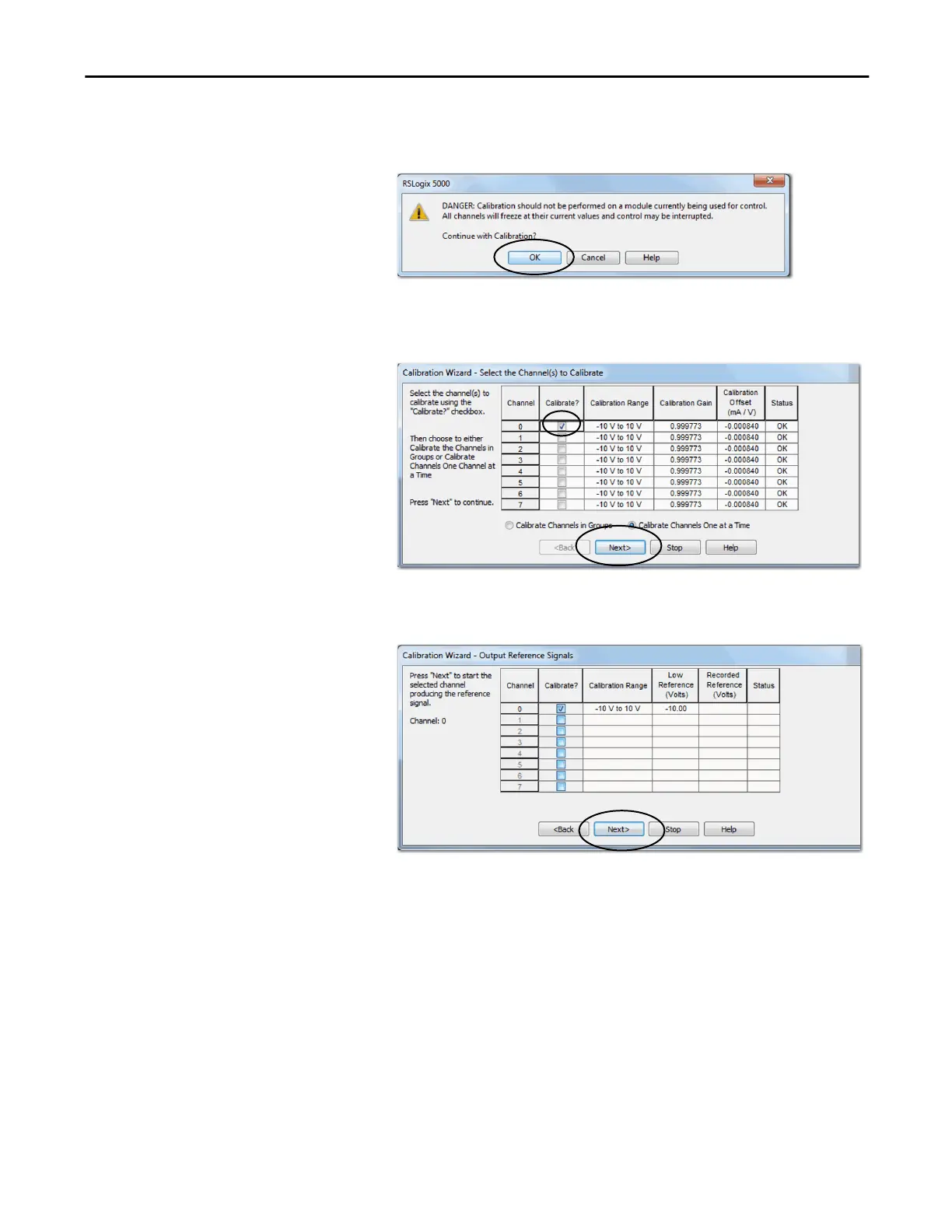

5. When the dialog box appears to confirm that you want to calibrate the
channel, click OK.
6. Select the channel to calibrate and click Next.
7. When the Output Reference Signals dialog box appears, click Next.
The Measure and Record Values dialog box appears.

Allen-Bradley 5069-IF8 Specifications

General

Brand	Allen-Bradley
Model	5069-IF8
Category	I/O Systems
Language	English
