Chapter 7 Calibrate the Module

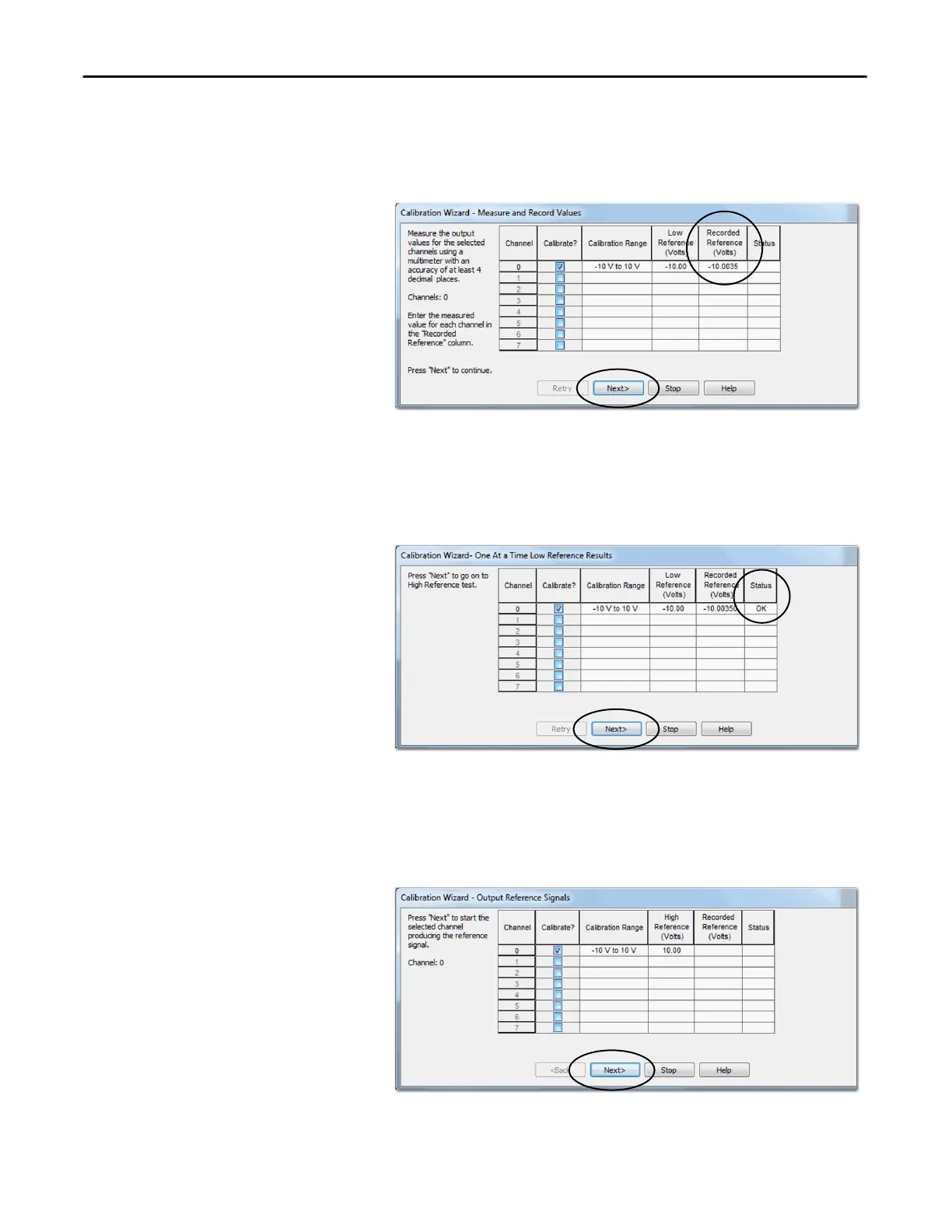

8. Use a multimeter to measure the reference value of the channel.
9. In the Recorded Reference (Volts) column record the measured value and
click Next.
The One At a Time Low Reference Results dialog box appears and
indicates the status of the calibrated channel.
10. If the status is OK, click Next.
If the status is not OK, repeat the calibration process.
11. When the Output Reference Signals dialog box appears and indicates the
channel to be calibrated for the high reference, click Next.
The Measure and Record Values dialog box appears.
To Next Page
