Rockwell Automation Publication 5000-UM005B-EN-P - November 2015 121
Calibrate the Module Chapter 7
12. Use a multimeter to measure the reference value of the channel.

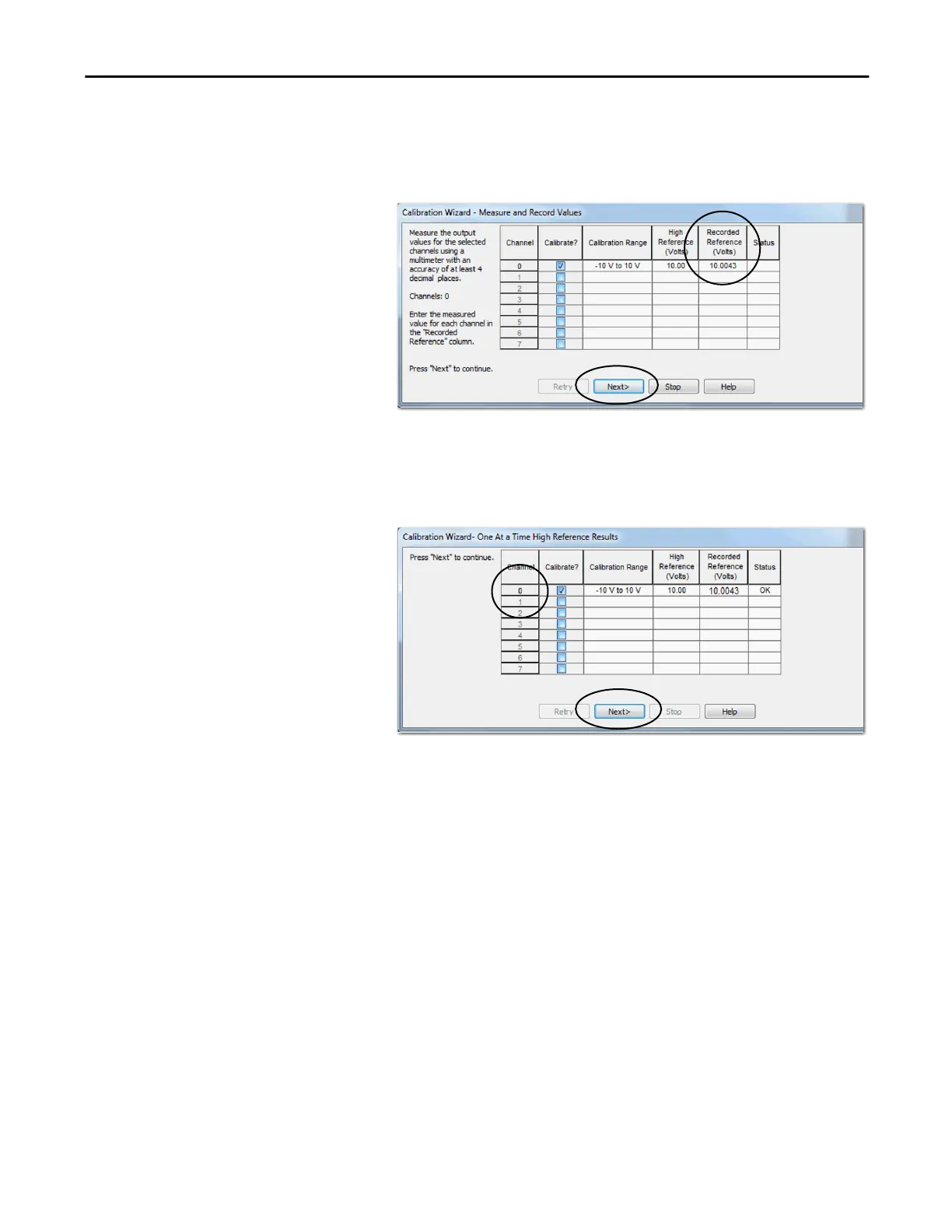

13. In the Recorded Reference (Volts) column record the measured value and
click Next.
The One At a Time High Reference Results dialog box appears and
indicates the status of the calibrated channel.
14. If the status is OK, click Next.
If the status is not OK, repeat the calibration process.
15. When the Calibration Completed dialog box appears, click Finish.
