114 Rockwell Automation Publication 825-UM004D-EN-P - November 2012
Chapter 9 825-PDN DeviceNet Communication Card

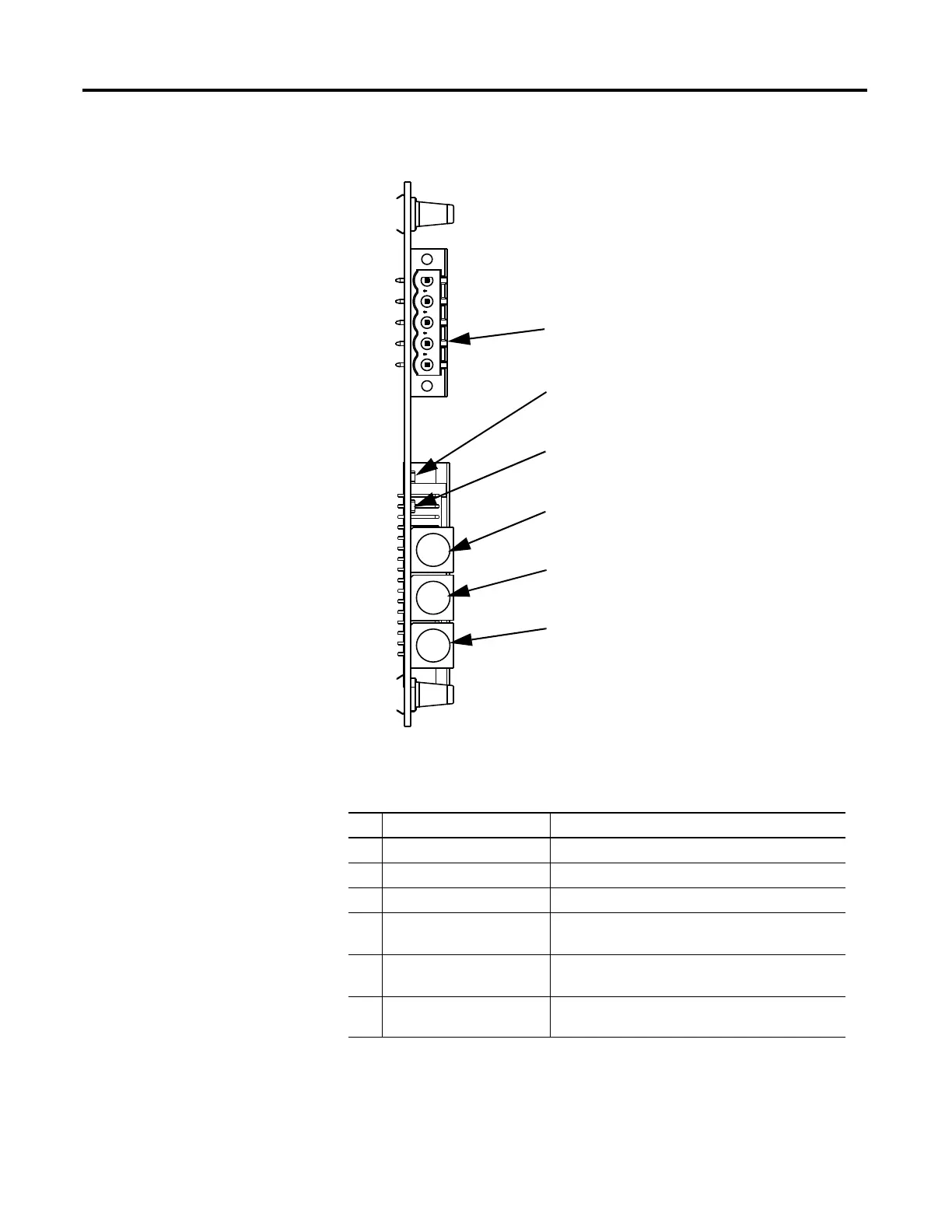

Figure 39 - 825-PDN Component Overview
Table 51 - Part Descriptions
# Par
t Description
➊ DeviceNet Connector Accepts a 5-pin linear DeviceNet plug.
➋ Bus Status LED Status indicator for backplane communications.
➌ Network Status LED Status indicator for DeviceNet communications.
➍ Node Address Switch Rotary switch for setting the most significant digit (MSD)
of node address.
➎ Node Address Switch Rotary switch for setting the least significant digit (LSD)
of node address.
➏ Data Rate Switch Rotary switch for selecting the DeviceNet data rate at which
the card communicates.
