Chapter 5 Using MPS Explorer
ANA (Test Analog Output)

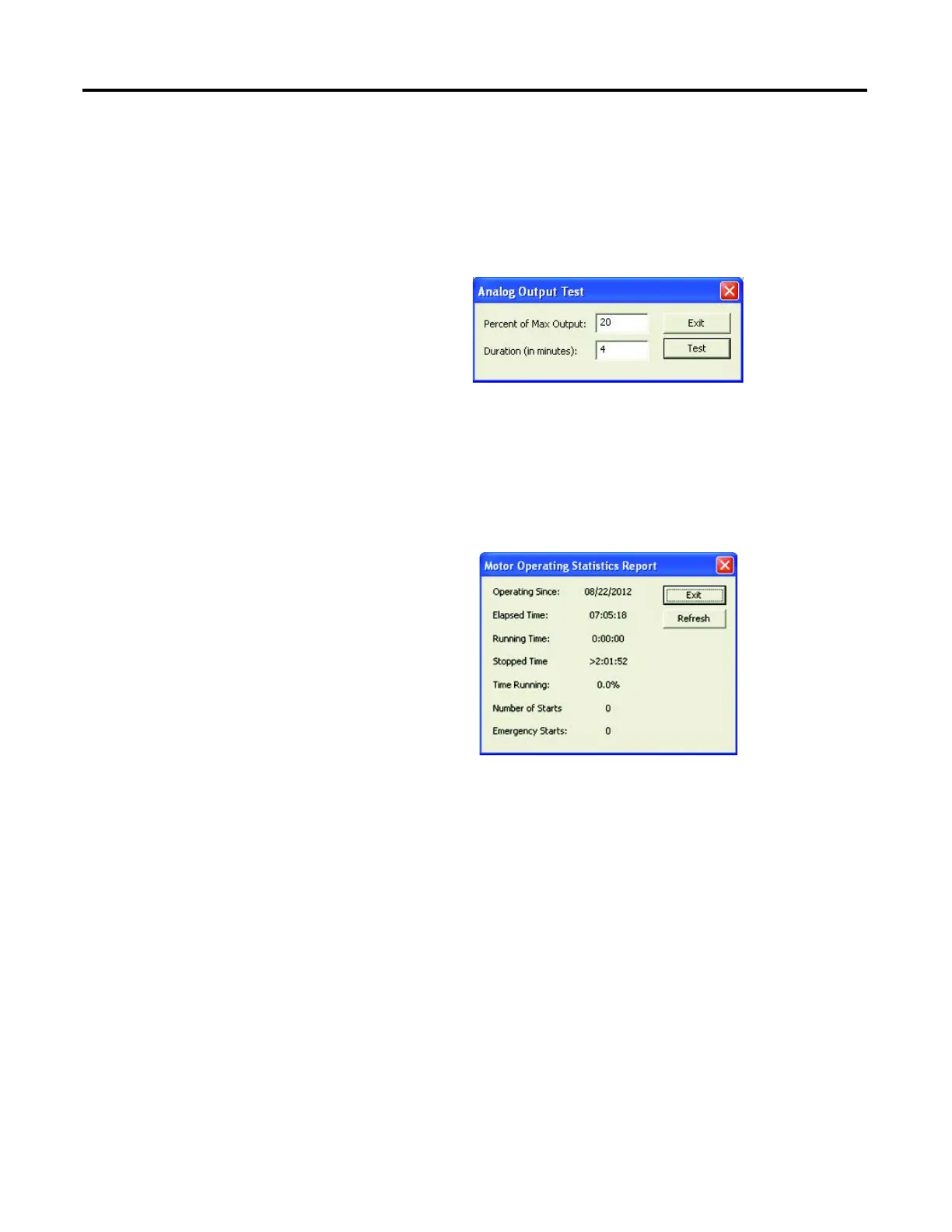

The Test Analog Output function will output a specified percentage of the
full analog output current for a defined period of time. Enter the percentage
and duration, click the Tes t button and monitor the analog output for the
expected current.
MOT (Motor Operating Statistics)
The Motor Operating Statistics function displays the operating statistics of the
motor that is connected to the 825-P relay. Newer firmware versions (R107+)
display the trip and alarm accumulators.
