120 Rockwell Automation Publication 825-UM004D-EN-P - November 2012
Chapter 9 825-PDN DeviceNet Communication Card

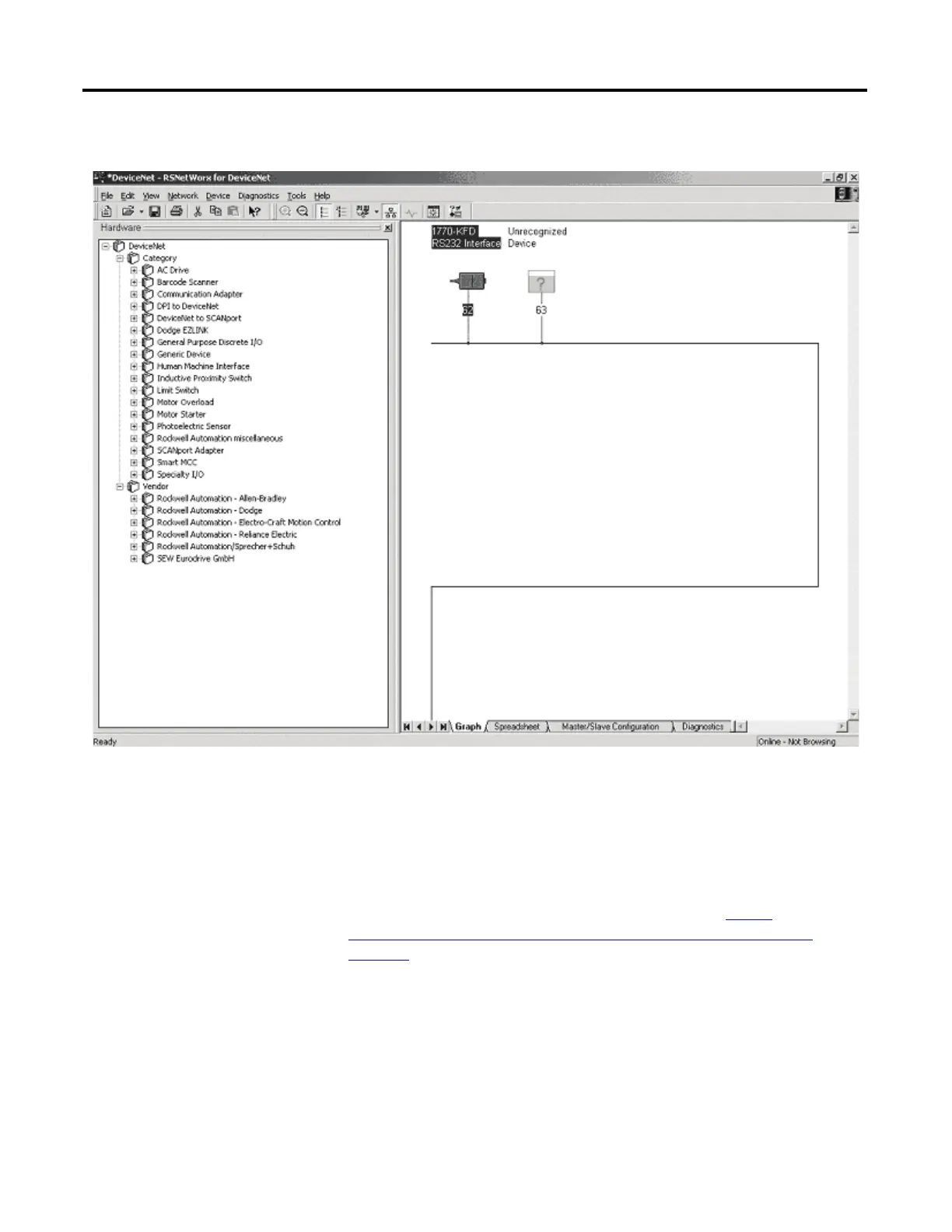

Figure 42 - Network Online Screen
6. If RSNetWorx recognizes the device as an 825-P Modular Protection
System, skip ahead to the section Using the Node Commissioning Tool
of RSNetWorx for DeviceNet.
Registering an EDS File
Download the 825-P DeviceNet EDS from the Internet at http://
www.rockwellautomation.com/rockwellautomation/support/networks/
eds.page?
Use the RSLinx Classic EDS Hardware Installation tool to register the new
EDS file.
