206 Rockwell Automation Publication 2198-UM002G-EN-P - February 2019
Chapter 6 Configure and Start the Kinetix 5700 Drive System
12. From the Digital Input pull-down menu choose Bus Capacitor OK or
Shunt Thermal Switch OK to monitor your capacitor module status or
the shunt thermal switch, respectively, depending on your application.
In this example, Bus Capacitor OK is chosen.

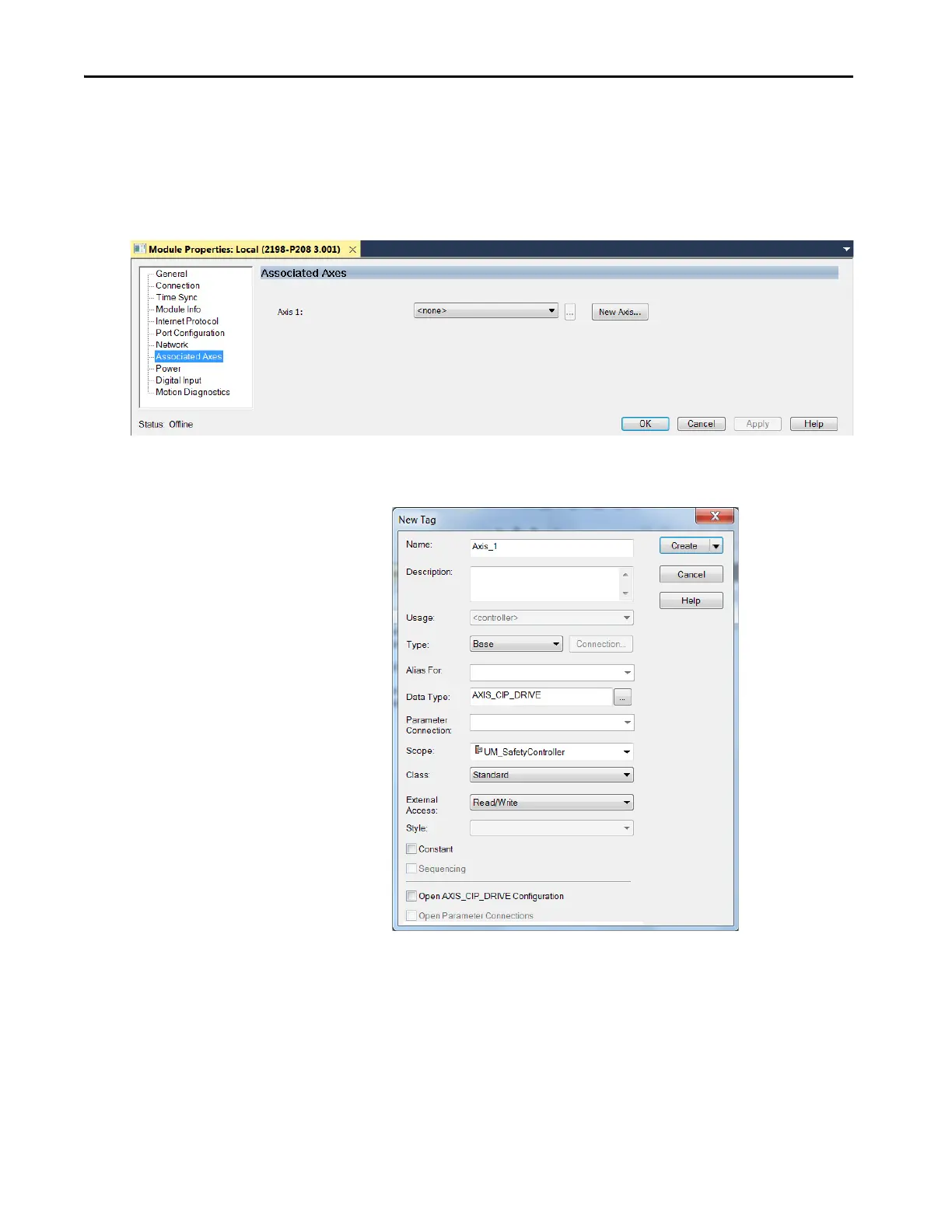

13. Click the Associated Axes category.
14. Click New Axis.
The New Tag dialog box appears.
15. Type the axis Name.
AXIS_CIP_DRIVE is the default Data Type.
16. Click Create.
