Rockwell Automation Publication 2198-UM002G-EN-P - February 2019 235

Configure and Start the Kinetix 5700 Drive System Chapter 6

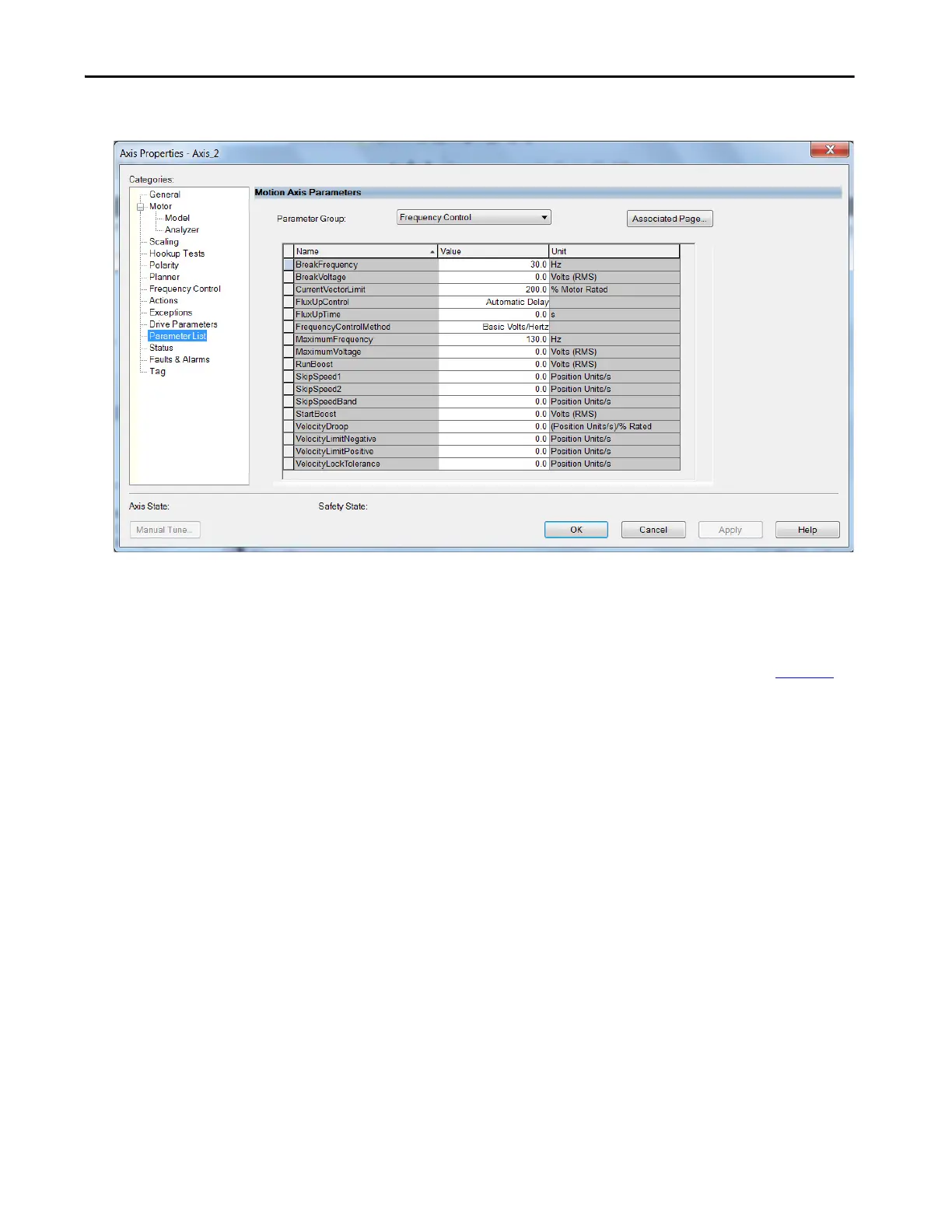

The Motion Axis Parameters dialog box appears.

7. From the Parameter Group pull-down menu, choose Frequency

Control.

8. Set the FluxUp, SkipSpeed, VelocityDroop, and CurrentVectorLimit

attributes appropriate for your application.

See the corresponding section in Appendix E, beginning on page 405

for information and configuration examples regarding all of these topics.

9. Click OK.
