Rockwell Automation Publication 2198-UM002G-EN-P - February 2019 237
Configure and Start the Kinetix 5700 Drive System Chapter 6

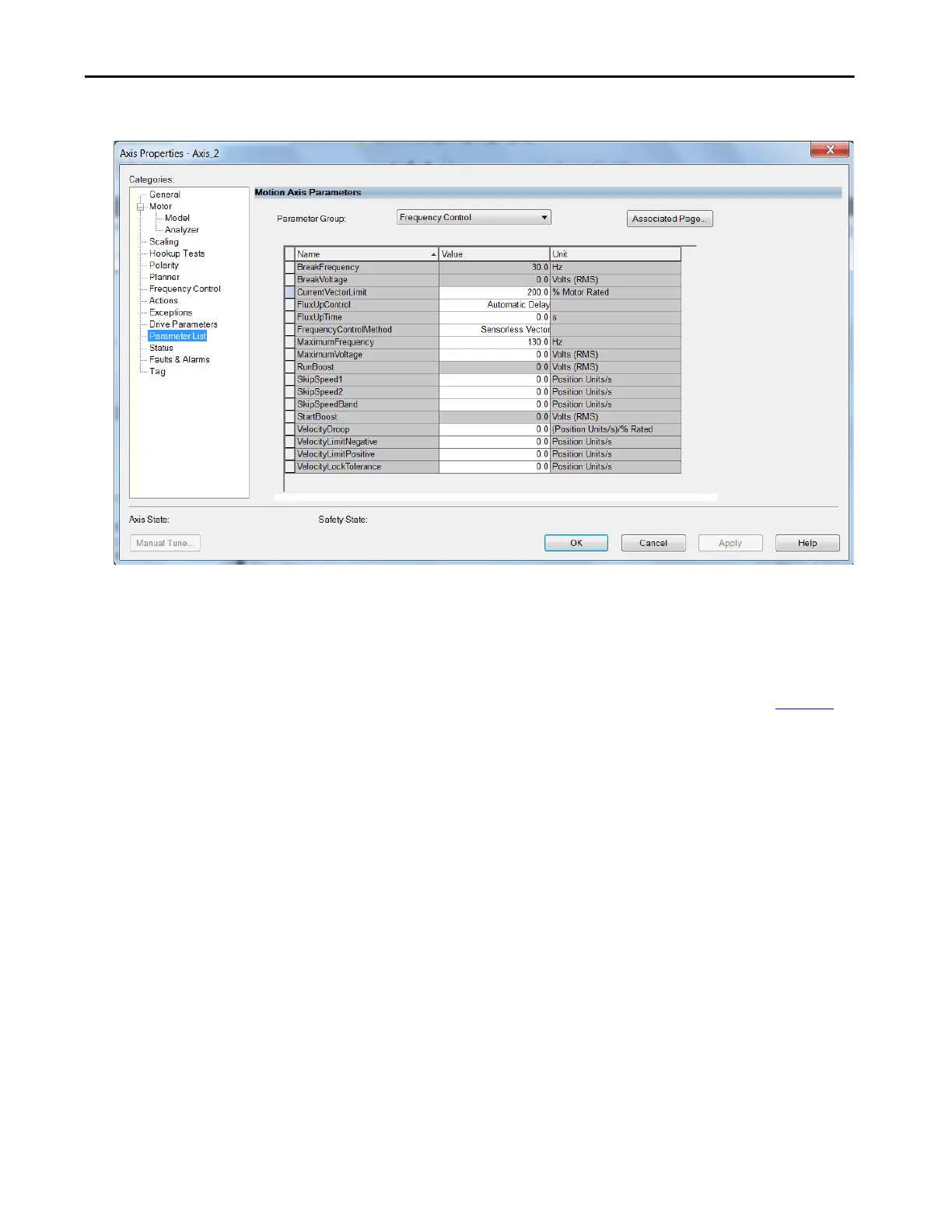

7. The Motion Axis Parameters dialog box appears.
8. From the Parameter Group pull-down menu, choose Frequency
Control.
9. Set the FluxUp, SkipSpeed, VelocityDroop, MaximumFrequency,
MaximumVoltage, and CurrentVectorLimit attributes appropriate for
your application.
See the corresponding section in Appendix E, beginning on page 405
,
for information and configuration examples regarding all of these topics.
10. Click Apply.
11. Select the Motor>Model category.
Motor model attributes are automatically estimated from the
Nameplate/Datasheet parameters. For improved performance, motor
tests can be run.
12. Select the Motor>Analyzer category.
