Chapter 6 Configure and Start the Kinetix 5700 Drive System

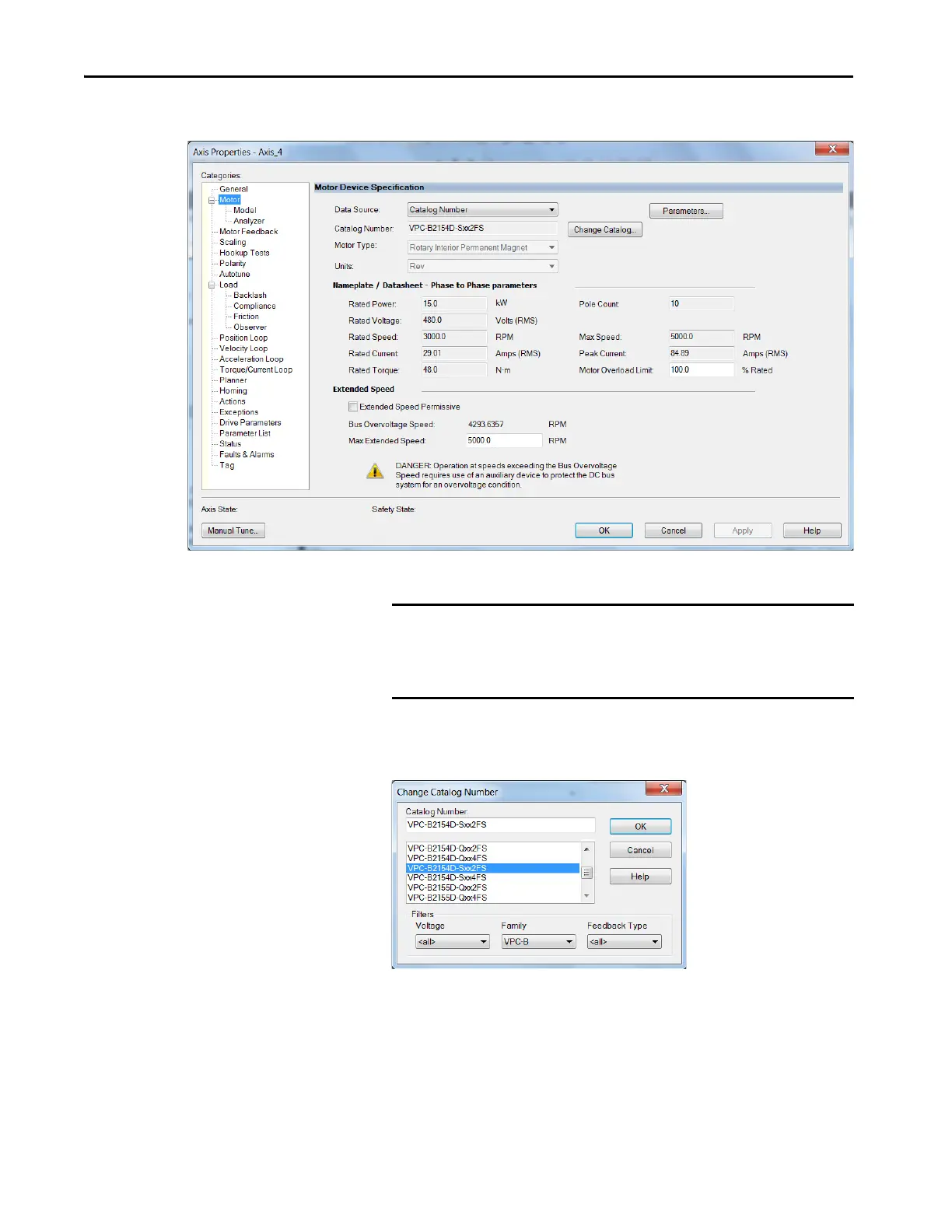

The Motor Device Specification dialog box appears.
7. From the Data Source pull-down menu, choose Catalog Number.
8. Click Change Catalog.
The Change Catalog Number dialog box appears.
9. Select the motor catalog number appropriate for your application.
To verify the motor catalog number, refer to the motor name plate.
10. Click OK to close the Change Catalog Number dialog box.
11. Click Apply.
Motor data specific to your motor appears in the Nameplate / Datasheet
- Phase to Phase parameters field.
IMPORTANT Motor NV is not a supported data source in the Logix Designer
application for axes configured as interior permanent-magnet (IPM)
motor closed-loop. In addition, third-party IPM motors are not
supported.
