Rockwell Automation Publication 2198-UM002G-EN-P - February 2019 435
Motor Control Feature Support Appendix E
Motion Drive Start Instruction Configuration
The MDS instruction is configured in a similar fashion to most motion
instructions, as seen in this example.

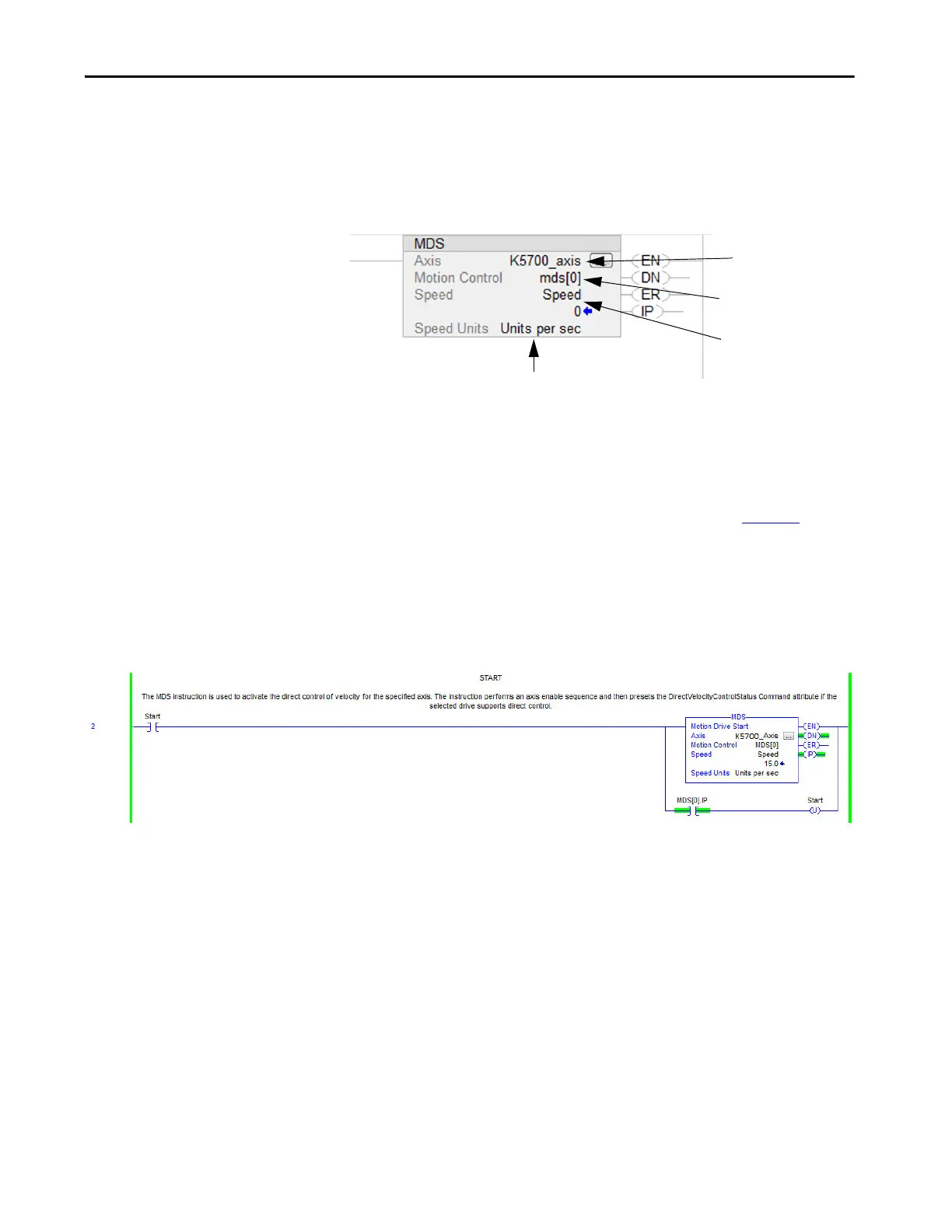

Figure 231 - Typical MDS Instruction
The MDS instruction is similar to a Motion Axis Jog (MAJ) instruction,
however, the MDS instruction does not set the acceleration/deceleration rates.
The acceleration rate is dynamically set by the ramp attributes configured in a
Set System Value (SSV) instruction. See Ramp Attributes on page 437
.
Motion Drive Start (MDS) Sample Code
Figure 232 - Start
Selected Axis
Motion Instruction Tag
Speed Reference
Units per sec
or
% of Maximum
TIP The K5700_Axis was configured for revolutions. Therefore, the Speed Units
are revolutions per second (rev/s).
To Next Page
