Appendix E Motor Control Feature Support
Table 194 - Ramp Attributes

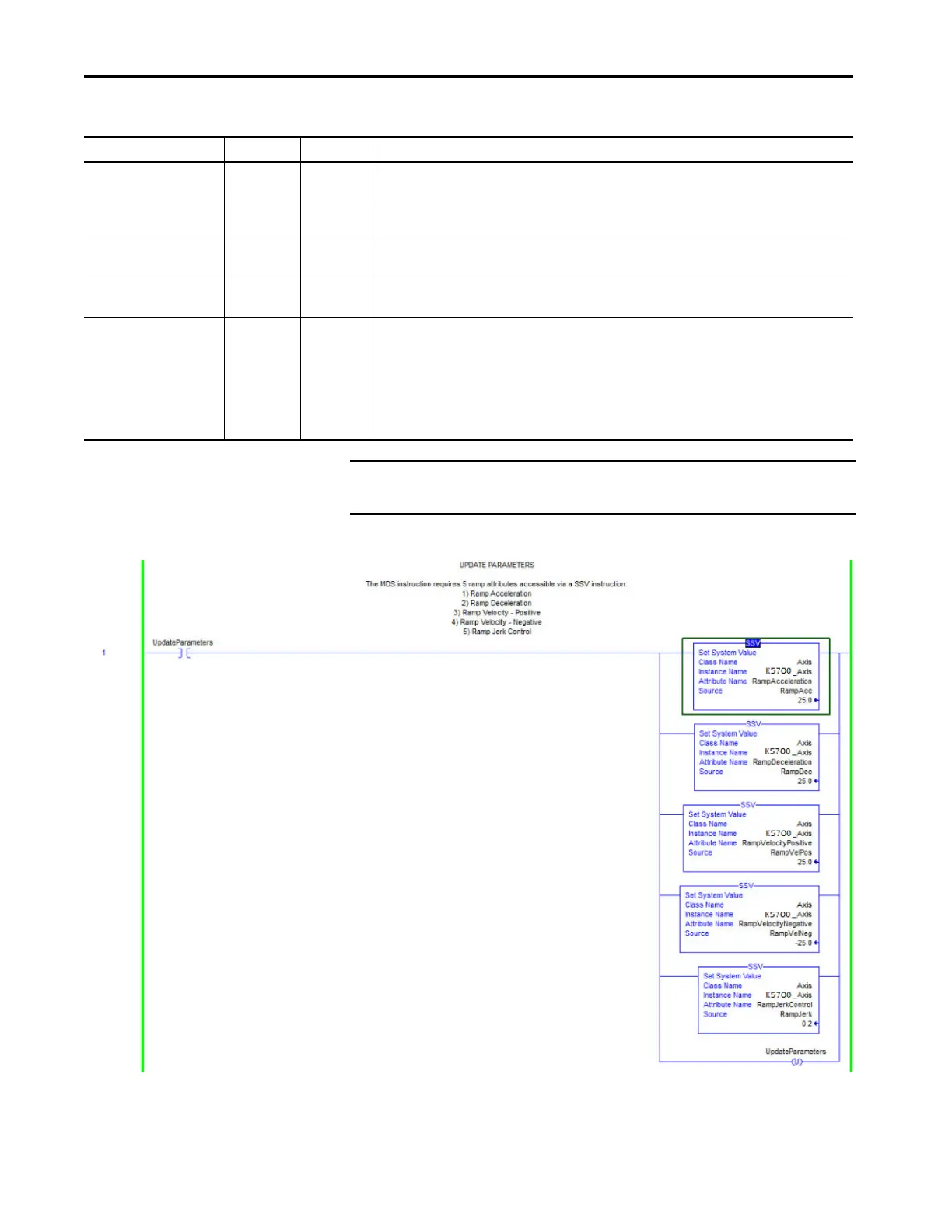

Figure 236 - Ramp Attribute Sample Code
Ramp Attribute Access ID Description
RampVelocity - Positive Set 374
Ramp Velocity - Positive attribute is a positive value that defines the maximum positive velocity command
output of the Ramp Generator.
RampVelocity - Negative Set 375
Ramp Velocity - Negative attribute is a negative value that defines the maximum negative velocity command
output of the Ramp Generator.
RampAcceleration Set 376
The Ramp Acceleration attribute is a positive value that defines the maximum acceleration (increasing speed)
of the velocity command output by the Ramp Generator.
RampDeceleration Set 377
The Ramp Deceleration attribute is a positive value that defines the maximum deceleration (decreasing
speed) of the velocity command output by the Ramp Generator.
RampJerk - Control Set 379
The Ramp Jerk Control attribute sets the percentage of acceleration or deceleration time that is applied to the
speed ramp as jerk limited S-Curve based on a step change in velocity. The S-Curve time is added half at the
beginning and half at the end of the ramp. A value of 0 results in no S-Curve, for example, a linear
acceleration or deceleration ramp. A value of 100% results in a triangular acceleration profile with the peak
being the configured ramp acceleration or deceleration. As the Jerk Control value increases, the derived
accelerating jerk value decreases based on the following: 0.5 • 0.01 • Jerk Control • Ramp Vel Positive/Ramp
Accel. The decelerating Jerk limit value also decreases according to the following: 0.5 • 0.01 • Jerk Control •
Ramp Vel Negative/Ramp Decel.
IMPORTANT The Ramp attributes can be viewed and set with only an SSV or GSV
instruction.
