60 Rockwell Automation Publication 2198-UM002G-EN-P - February 2019
Chapter 2 Plan the Kinetix 5700 Drive System Installation

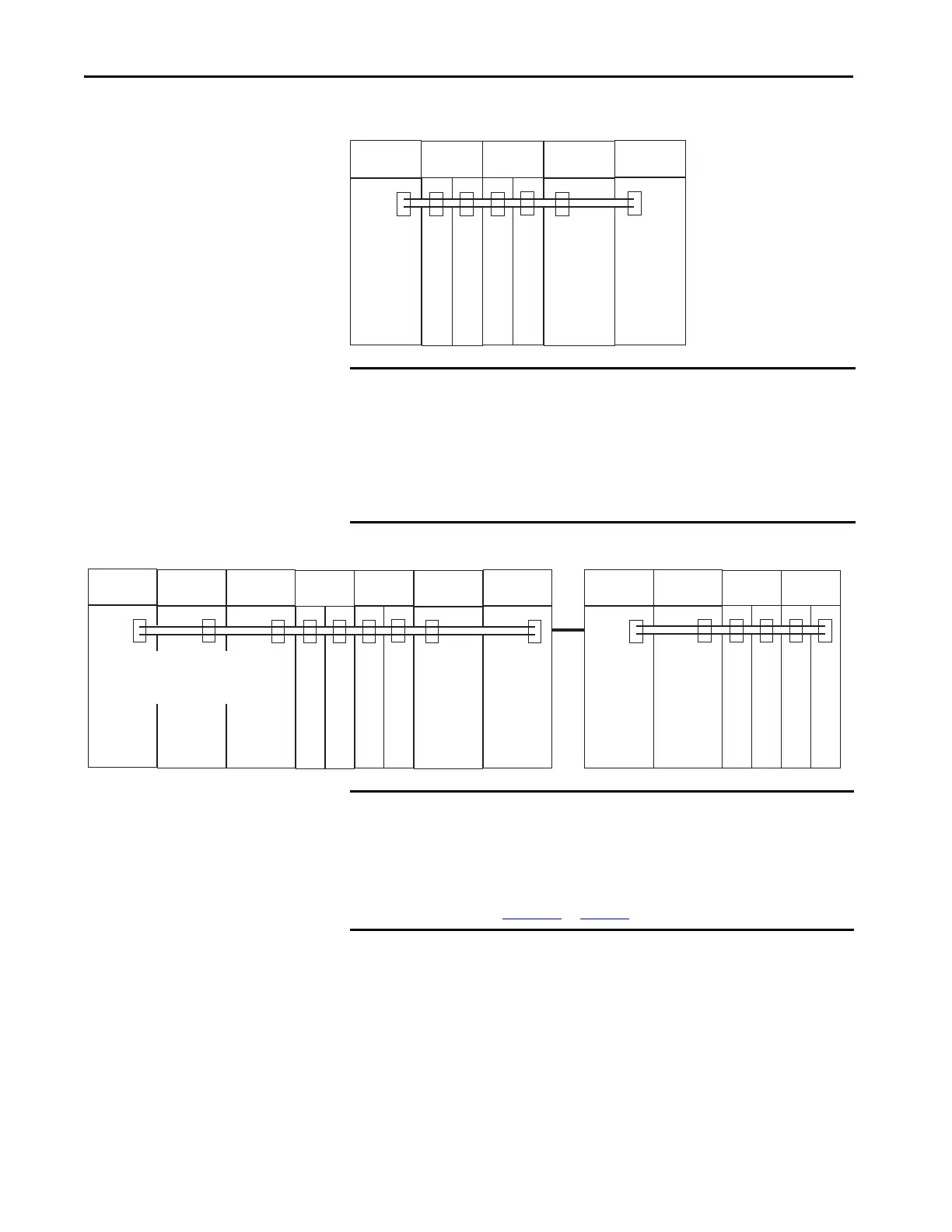

Figure 23 - DC-bus Power Supply Example/Multiple Capacitor Modules
Figure 24 - Multiple DC-bus Power Supply Example/Extended Cluster (208 A, max)
2198-Sxxx-ERSx
2198-Dxxx-ERSx
2198-Sxxx-ERSx
2198-Dxxx-ERSx
2198-Pxxx
2198-CAPMOD-2240
2198-CAPMOD-2240
Capacitor
Module
Single-axis
Inverters
Dual-axis
Inverters
DC-Bus
Power Supply
DC Bus
Capacitor
Module
This example includes:
•1 Bus group
•1 Drive cluster
IMPORTANT In both of these examples, the Kinetix 5700 drive system includes two
accessory modules per cluster. Flexible bus bars are included with only the
2198-CAPMOD-DCBUS-IO extension module. So, if you have two capacitor
modules, two DC-bus conditioner modules, or a capacitor module and
DC-bus conditioner module mounted side by side, you must order the
2198-KITCON-CAPMOD2240 or 2198-KITCON-DCBUSCOND connector set
separately.
2198-Sxxx-ERSx
2198-Dxxx-ERSx
2198-Sxxx-ERSx
2198-Dxxx-ERSx
2198-P208
2198-CAPMOD-2240
2198-Sxxx-ERSx
2198-Dxxx-ERSx
2198-Sxxx-ERSx
2198-Dxxx-ERSx
2198-CAPMOD-2240
2198-CAPMOD-DCBUS-IO
2198-CAPMOD-DCBUS-IO
2198-P208
2198-P208
Capacitor
Module
Single-axis
Inverters
Dual-axis
Inverters
DC-Bus
Power Supply
Extension
Module
Extension
Module
Capacitor
Module
Single-axis
Inverters
Dual-axis
Inverters
DC Bus
DC Bus
DC-Bus
Power Supply
DC-Bus
Power Supply
This example includes:
•1 Bus group
•2 Drive clusters
IMPORTANT The systems that are shown are typical. The maximum number of inverter
modules depends on the maximum system capacitance precharge
capability of the power supply. With multiple 2198-P208 modules, there is
more precharge capability. When there are two or three DC-bus power
supplies, they must be catalog number 2198-P208.
Refer to Appendix C
on page 391 for more system sizing information.
