Observe these guidelines when mounting your external active shunt inside the
drive system enclosure:
• Mount the shunt resistors anywhere in the dirty zone, but as close to the
Kinetix 5700 power supply as possible.
• Route the shunt power wires with other very dirty wires.
• Keep unshielded wiring as short as possible, not to exceed 3 m (9.8 ft).
Keep shunt wiring as flat to the cabinet as possible.
• Separate shunt power cables from other sensitive low-voltage signal
cables.

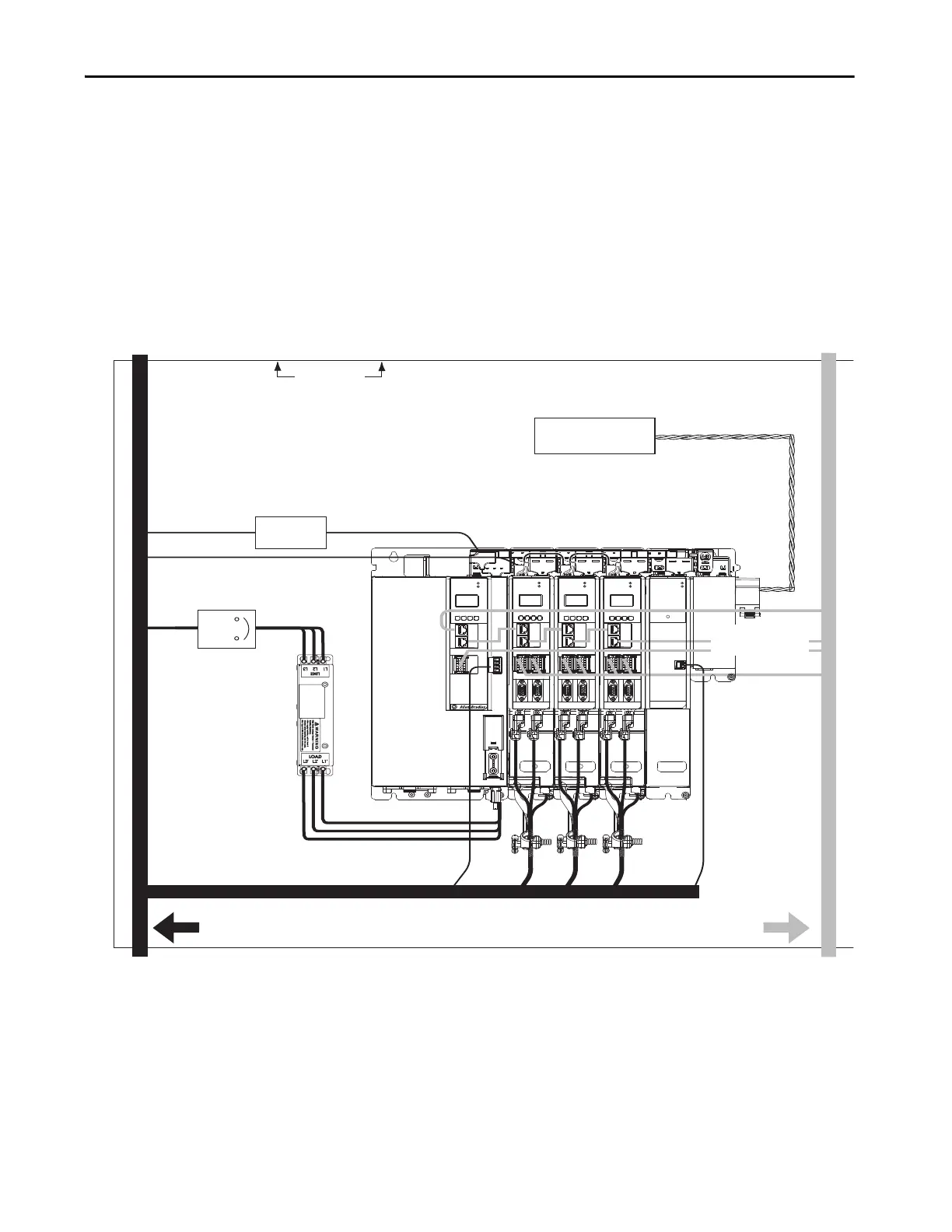

Figure 43 - External Active Shunt Mounted Inside the Drive System Enclosure
VD
C
D
D
VD
D
C
MOD
NET
2
1
I/O-A I/O-B
UFB-A UFB-B
D+
D-
MF-A MF-B
D+
D-
MOD
NET
2
1
I/O-A I/O-B
UFB-A UFB-B
D+
D-
MF-A MF-B
D+
D-
MOD
NET
2
1
I/O-A I/O-B
UFB-A UFB-B
D+
D-
MF-A MF-B
D+
D-
D
C
16
510
16 1616 1616
MOD
NET
2
1
1
I/O
6
5
10
OK+
OK–
EN–
EN+
MOD
NET
MODULE
STATUS
VD
Dirty Wireway
Clean Wireway
Motor Cables
Enclosure
No sensitive
equipment within
150 mm (6.0 in.).
Shunt Power Wiring Methods:
Twisted pair in conduit (1st choice).
Twisted pair, two twists per foot (min) (2nd choice).
Circuit
Protection
Route motor cables
in shielded cable.
Route registration and communication
signals in shielded cables.
Kinetix 5700 Servo Drive System
24V DC
Power Supply
AC Line Filter
(required for CE)
Module Status
76 mm (3.0 in.)
clearance (min) below, left,
and right of the shunt resistor.
Safety Cable
(hardwired safety only)
150 mm (6.0 in.)
clearance (min) above the
shunt resistor.
Very Dirty Filter/AC Input
Connections Segregated
(not in wireway)
Digital Inputs
and Ethernet Cables
External Active Shunt
