Rockwell Automation Publication 2080-UM004D-EN-E - March 2018 91

Quickstart Appendix B

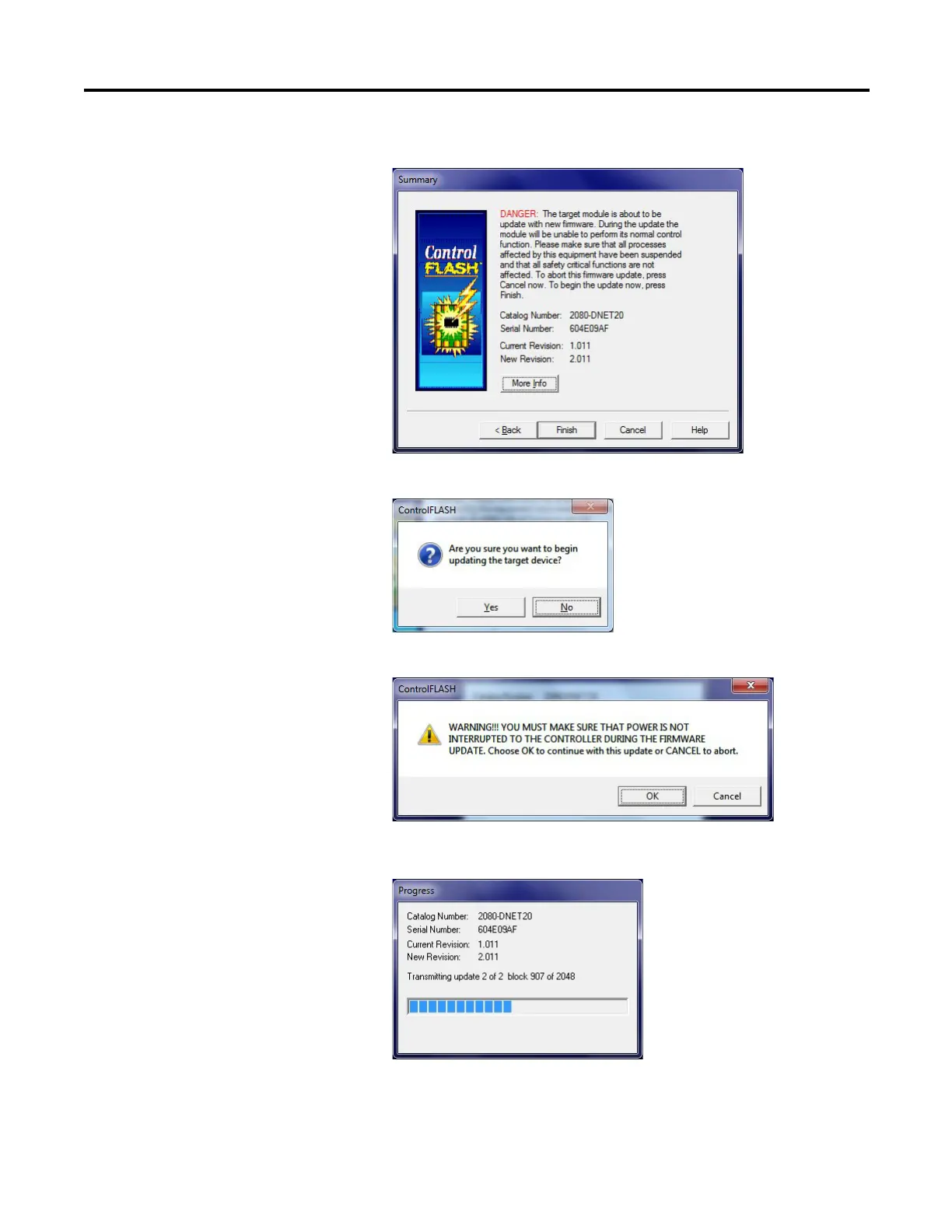

6. Verify your selection and click Finish.

7. Click Yes to continue.

8. Click OK to begin the upgrade process.

A dialog showing the progress appears.
