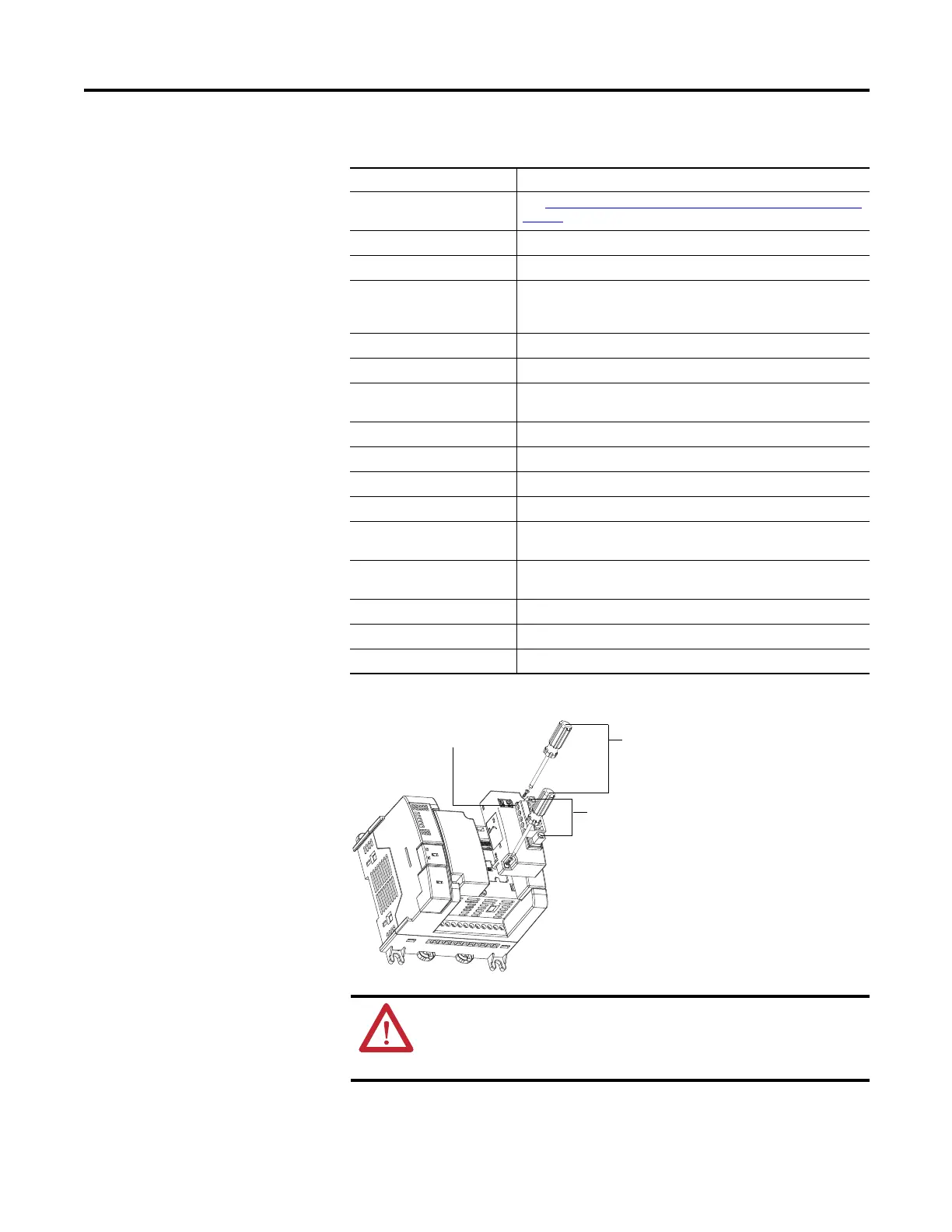

Rockwell Automation Publication 2080-UM004D-EN-E - March 2018 79
Specifications Appendix A
Communication Plug-in
Modules
Torque Specifications for the 2080-DNET20 Plug-in Module
Specifications – 2080-DNET20
Attribute Value
Screw torque See Torque Specifications for the 2080-DNET20 Plug-in Module on
page 79.
Dimensions, HxWxD 62 x 31.5 x 20 mm (2.44 x 1.24 x 0.78 in.)
Weight 35 g
DeviceNet communication
rate, max
125 Kbps – 420 m (1378 ft.)
250 Kbps – 200 m (656 ft.)
500 Kbps – 75 m (246 ft.)
Number of nodes, max 20 nodes for I/O operation
Network Protocol I/O Slave Messaging: Poll Command
DeviceNet Status indicators Module status – red/green
Network status – red/green
Enclosure type rating Meets IP20
Backplane power consumption 50 mA @ 24V DC
DeviceNet current 24V DC, 300 mA Class 2
Power dissipation, max 1.44 W
Isolation voltage 50V (continuous)
Type tested for 60 s @ 500V AC
Wire size 0.25... 2.5 mm
2
(24...14 AWG) solid or stranded copper wire rated
@ 75 °C (167 °F ), or greater, 1.2 mm (3/64 in.) insulation max
Wire category 1 – on power ports
North American temp code T4
Preferred power supply 1606-XLSDNET4
Mounting torque 0.2 Nm
Mounting torque 0.3 Nm
Mounting torque:
0.5…0.6 Nm
46209
ATTENTION: To comply with CE Low Voltage Directive (LVD), this
equipment and all connected I/O must be powered from a source
compliant with the following: Safety Extra Low Voltage (SELV) or
Protected Extra Low Voltage (PELV).
