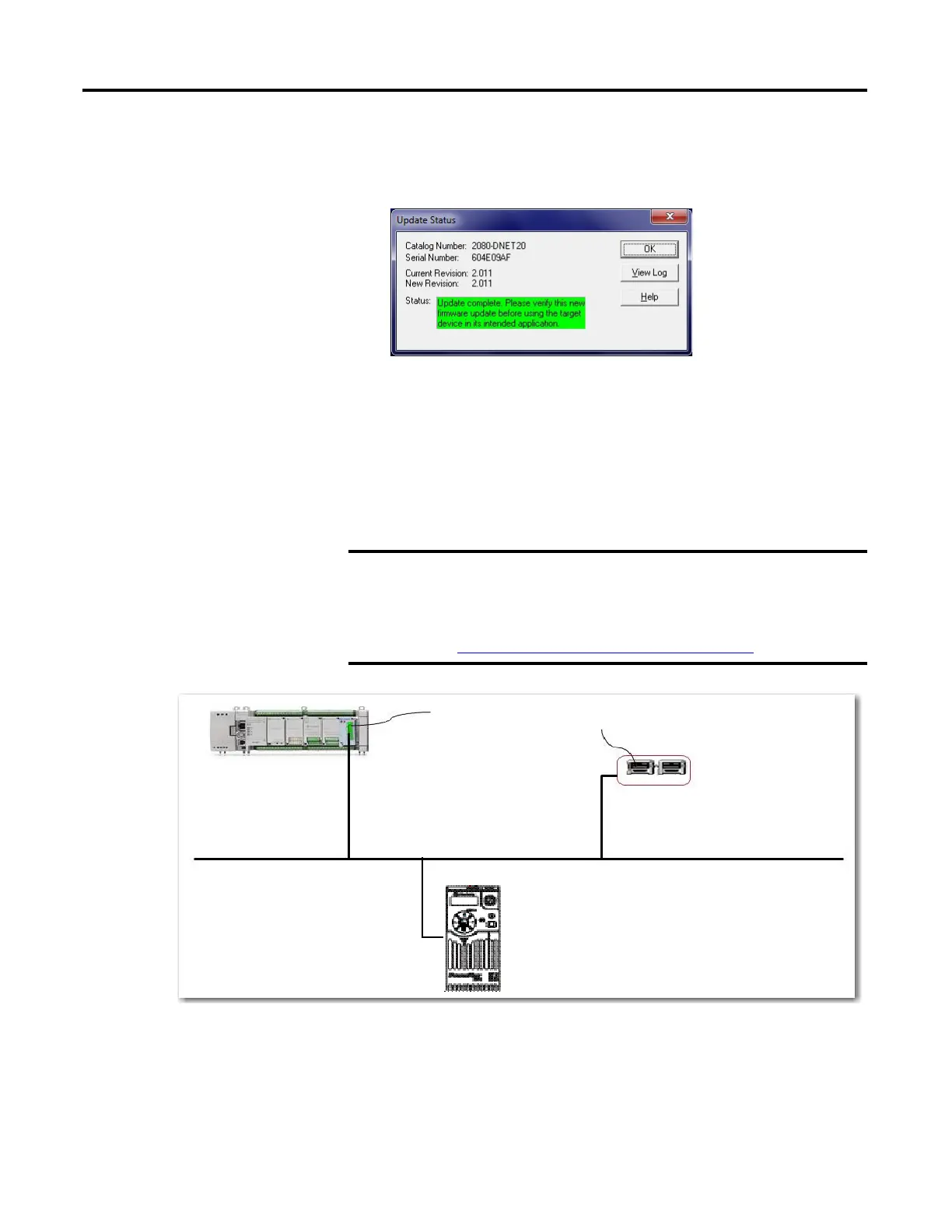

9. When the flash update is complete, the Update Status dialog appears.
Check that the status is green and the update is complete. If the status is
unsuccessful, power cycle the controller and restart the upgrade process.
10. After a successful firmware upgrade, power cycle the controller.
Quickstart Project for
2080-DNET20 Plug-in
Using your 2080-DNET20 plug-in module and user defined function blocks in
Connected Components Workbench, the following quickstart project shows you
how to turn on all the outputs of a CompactBlock LDX module connected in
Node 3.
Quickstart Prerequisite
For the following quickstart projects, you first need first need to
download the DNET UDFBs and sample project from the
Sample Code Library:
http://www.rockwellautomation.com/go/scmicro800
Micro800 Controller
with 2080-DNET20
Dropline
Dropline
Trunkline
Node 0
Node 1
CompactBlock LDX
Node 3
To Next Page
