Rockwell Automation Publication 2080-UM004D-EN-E - March 2018 87

Quickstart Appendix B

Browse Using the Micro800 Pass Through

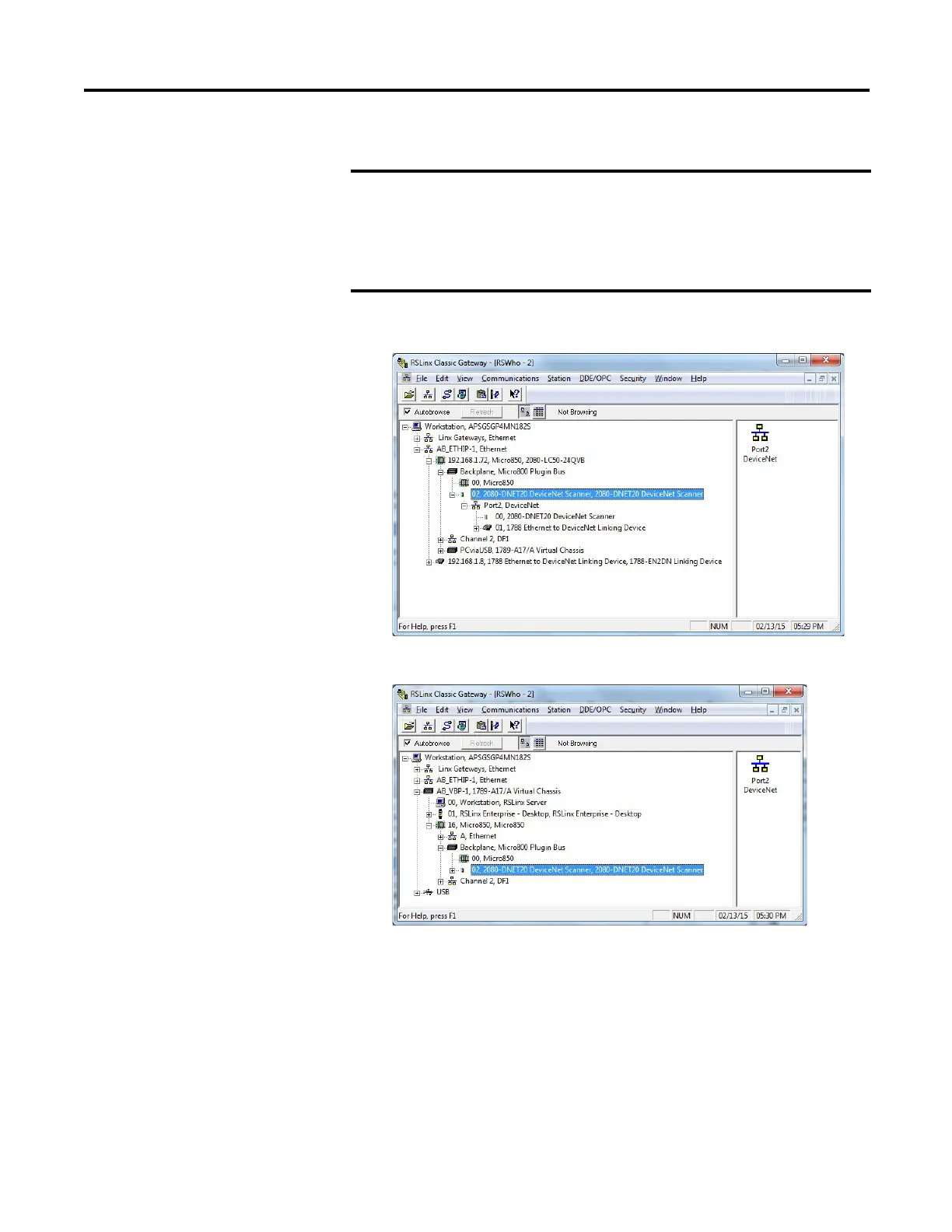

Browsing the 2080-DNET20 plug-in from the controller backplane through

EtherNet/IP.

Browsing the 2080-DNET20 plug-in from the controller backplane through USB.

IMPORTANT

To use the controller pass through feature, the following firmware

revisions are required:

• Micro820/Micro830/Micro850 controller firmware revision 8.011 or

higher.

• 2080-DNET20 plug-in firmware revision 2.011 or higher.
