Install and Wire Your Module Chapter 2
Wiring Applications for
2080-MOT-HSC
The following diagrams show wiring applications for the 2080-MOT-HSC
plug-in with Kinetix® Servo drives.

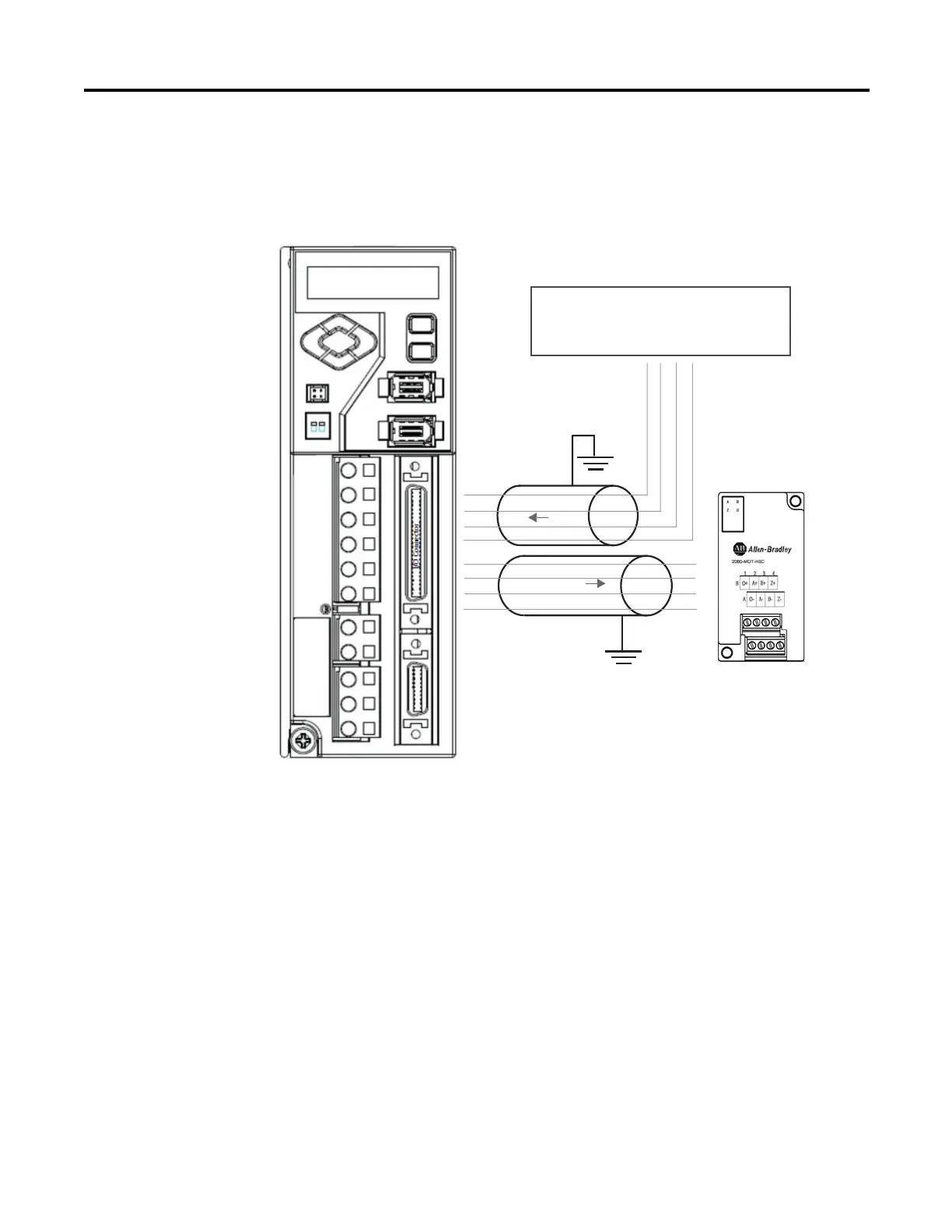

Kinetix 3 in feedback configuration to 2080-MOT-HSC
Micro830/Micro850 QBB (24 pts)
PTO
I/O Connector
49 = 24V_PULS+
12 = PLUS-
14 = SIGN-
25 = 24V_SIGN+
I/O Connector
29 = AM+
30 = AM-
31 = BM+
32 = BM-
49
12
14
25
FEEDBACK
A+
A-
B+
B-
O-00
-CM0
-CM1
O-03
29
30
31
32
