Rockwell Automation Publication 2080-UM004D-EN-E - March 2018 95

Quickstart Appendix B

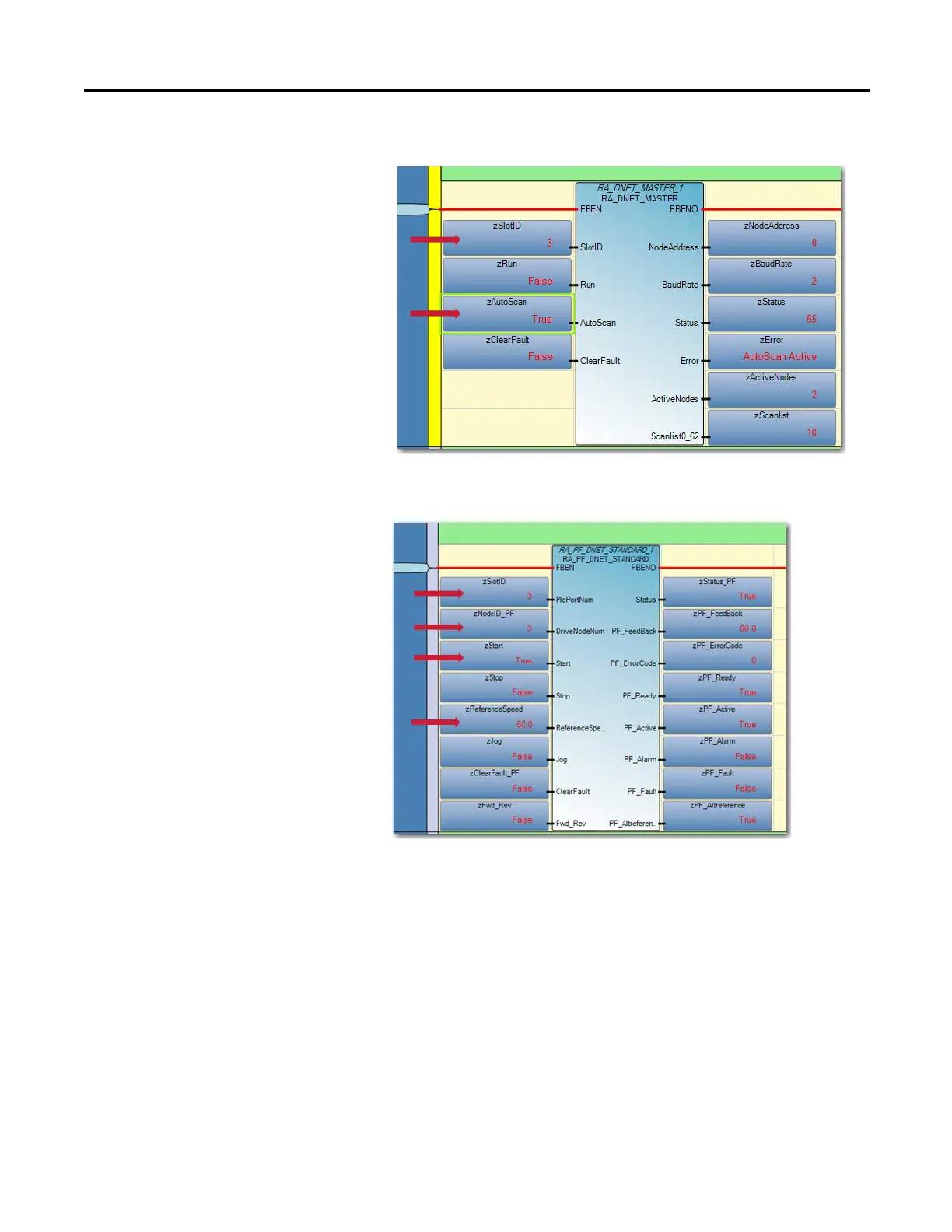

3. Configure the RA_DNET_MASTER UDFB as shown.

4. Configure the PowerFlex UDFB as shown (that is, set the node address,

plug-in slot ID, and so on).
