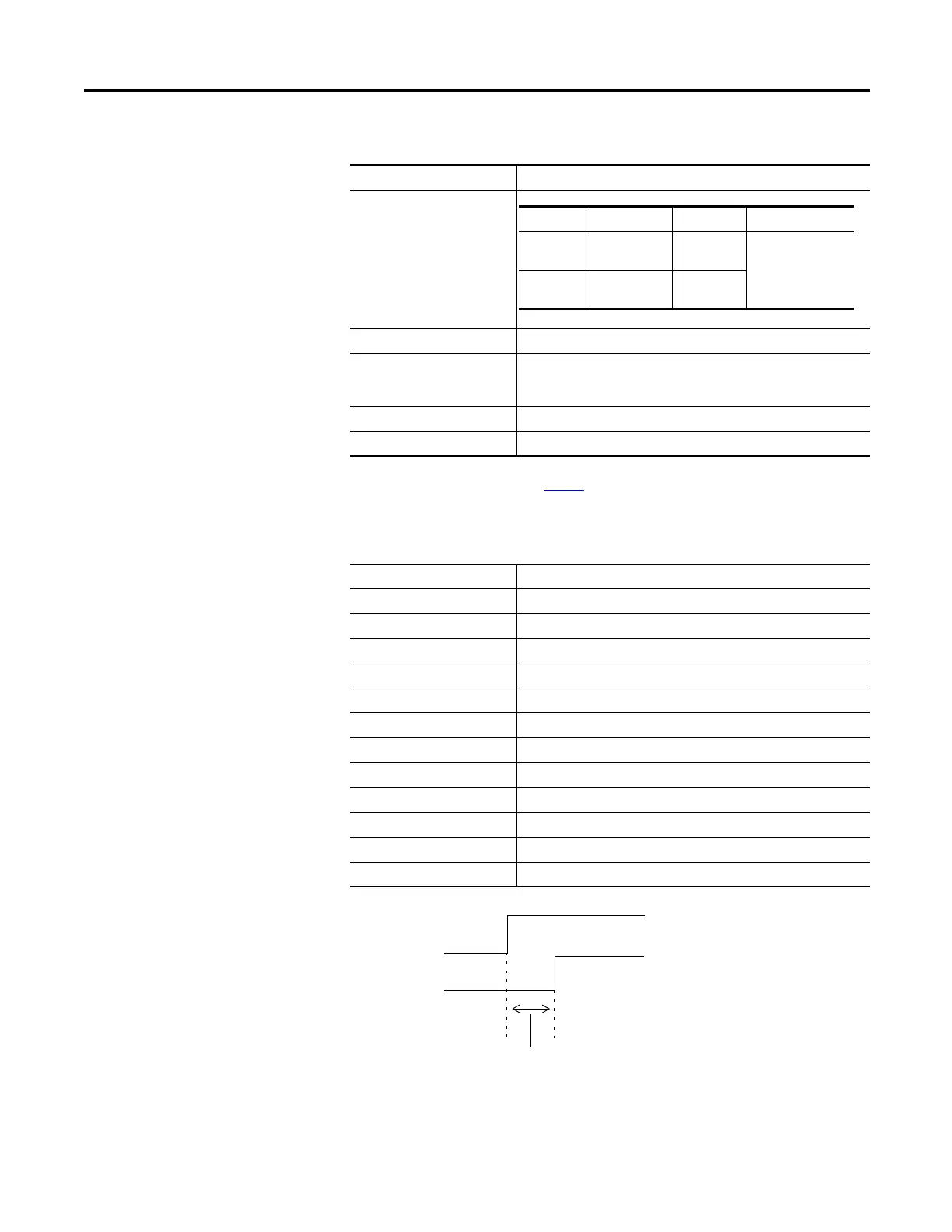

Rockwell Automation Publication 2080-UM004D-EN-E - March 2018 75
Specifications Appendix A
Wire size
Enclosure type rating Meets IP20
Isolation voltage Input module: 50V (continuous), Basic Insulation Type, Inputs/
Outputs to Backplane
Type tested for 60s @ 720V DC, Inputs/Outputs to Backplane
Wiring Category
(1)
2 – on signal ports
North American Temp Code T4
(1) Use this Conductor Category information for planning conductor routing. Refer to Industrial Automation Wiring
and Grounding Guidelines, publication 1770-4.1
.
Input Specifications – 2080-MOT-HSC
Attribute Value
Number of inputs 1 Quadrature (ABZ) differential input
Maximum count 48 bits
Input voltage range 0…30V DC
On state voltage range 2.6…30V DC
On-state current, min 2.0 mA
Off-state voltage, max 1.0V DC
Off-state leakage current, max 1.5 mA
Input current range 2.0…9.0 mA
Input impedance, nom 3580 Ω
Pulse width, min 2 µs
Phase separation, min 500 ns
(1)
(1) Phase separation is the recognition of phase time of A input and B input.
Input frequency, max 250 kHz (50% duty)
General Specifications – 2080-MOT-HSC
Attribute Value
Min Max
Solid 0.14 mm
2
(26 AWG)
1.5 mm
2
(16 AWG)
rated @ 90 °C
(194 °F) insulation
max
Stranded 0.14 mm
2
(26 AWG)
1.0 mm
2
(18 AWG)
Input A
Input B
Phase separation
