Rockwell Automation Publication 2080-UM004D-EN-E - March 2018 77
Specifications Appendix A

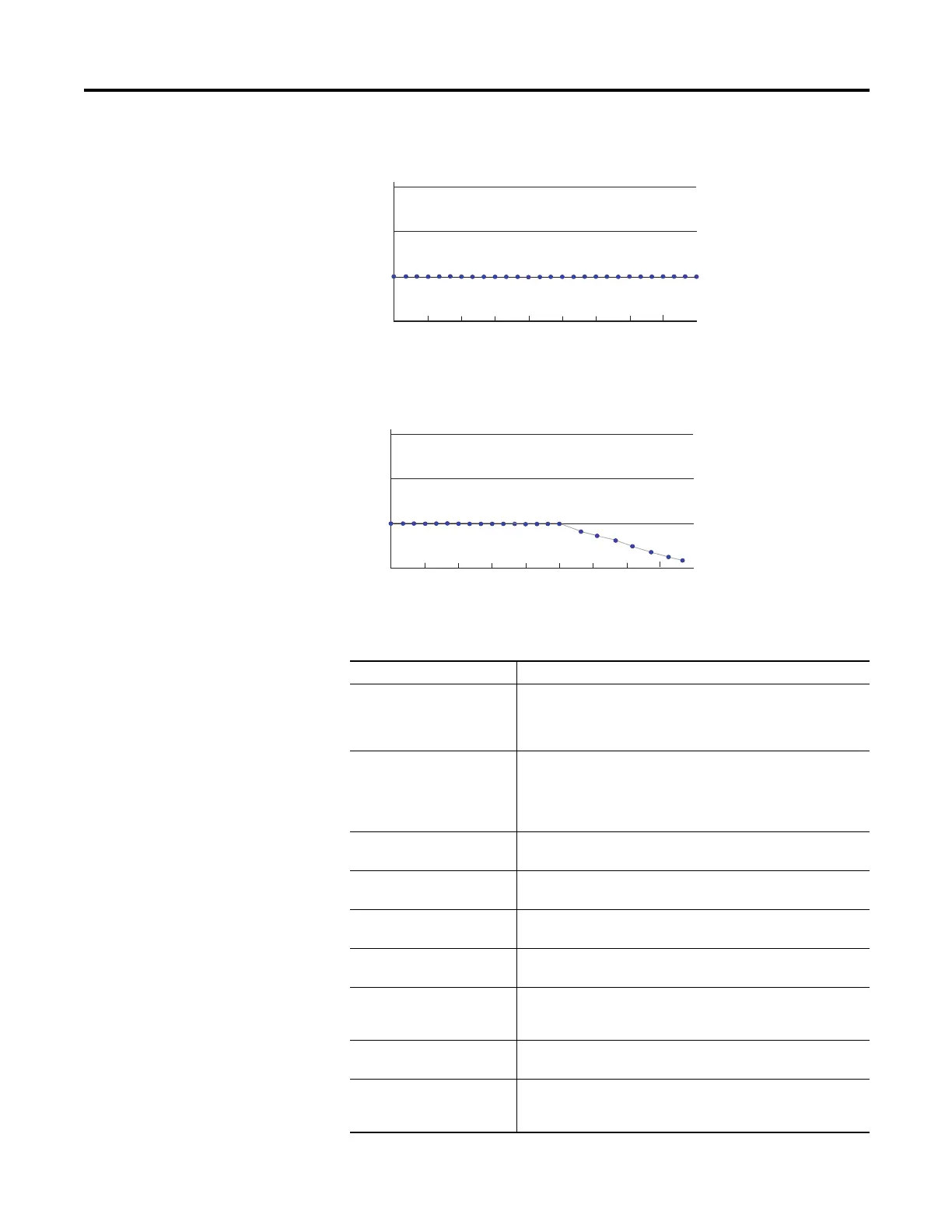

Maximum output currrent per point – 5V DC operation
Maximum output current per point – 24V DC operation
Environmental Specifications – 2080-MOT-HSC
Attribute Value
Temperature, operating IEC 60068-2-1 (Test Ad, Operating Cold),
IEC 60068-2-2 (Test Bd, Operating Dry Heat),
IEC 60068-2-14 (Test Nb, Operating Thermal Shock):
-20…65 °C (-4…149 °F)
Temperature, nonoperating IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold),
IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat),
IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal
Shock):
-40…85 °C (-40…185 °F)
Temperature, surrounding air,
max
65 °C (149 °F)
Relative humidity IEC 60068-2-30 (Test Db, Unpackaged Damp Heat):
5…95% noncondensing
Vibration IEC 60068-2-6 (Test Fc, Operating):
2 g @ 10…500 Hz
Shock, operating IEC 60068-2-27 (Test Ea, Unpackaged Shock):
25 g
Shock, nonoperating IEC 60068-2-27 (Test Ea, Unpackaged Shock):
25 g
35 g (PANEL mount)
Emissions CISPR 11 (IEC 61000-6-4):
Class A
ESD immunity IEC 61000-4-2:
6 kV contact discharges
8 kV air discharges
-20
-10 0
10
20
30 40 50 60
70
0
0.5
1
1.5
Current per points (A)
Ambient Temperature (°C)
Current Derating Based on Temperature
-20
-10 0
10
20
30 40 50 60
70
0
0.5
1
1.5
Current per points (A)
Ambient temperature (°C)
Current derating based on temperature
