Rockwell Automation Publication 2080-UM004D-EN-E - March 2018 89

Quickstart Appendix B

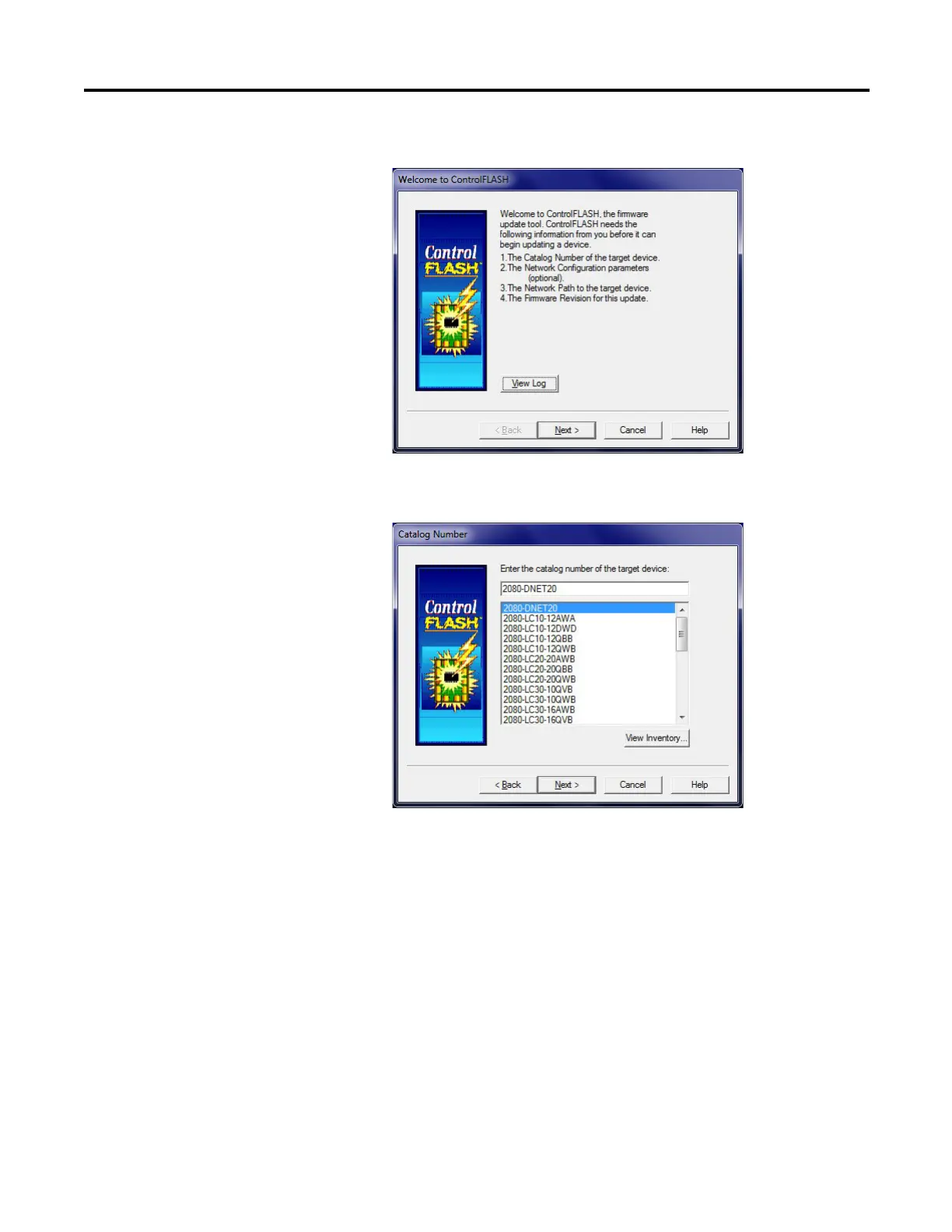

2. Launch ControlFLASH and click Next.

3. In the Catalog Number dialog, select the 2080-DNET20 plug-in and click

Next.
