Allen-Bradley micrologix 1500 User Manual

Publication 1764-UM001B-EN-P - April 2002
Specifications A-9

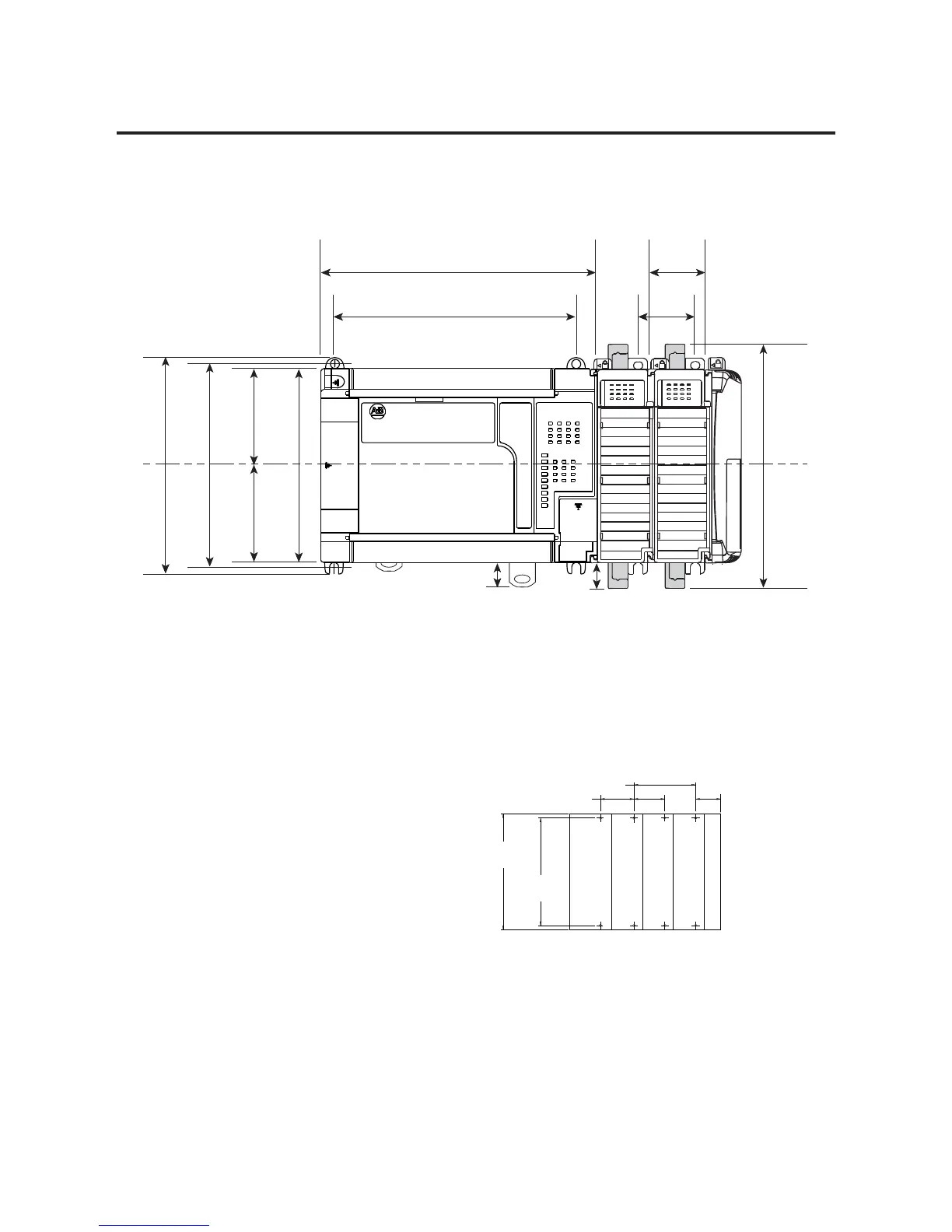

Controller Dimensions
See page 2-12 for Base Unit Mounting Dimensions.
Compact I/O Dimensions
Panel Mounting
132 mm (5.19 in)
122.6 mm (4.83 in)
118 mm (4.65 in)
147.4 mm (5.81 in)
14.7 mm
(0.58 in)
35 mm
(1.38 in)
168 mm
(6.62 in)
147 mm
(5.79 in)
35 mm
(1.38 in)
13.5 mm
(0.53 in)
59 mm
(2.32 in)
59 mm
(2.32 in)
132
(5.197)
122.6±0.2
(4.826±0.008)
35
(1.38)
28.5
(1.12)
For more than 2 modules: (number of modules - 1) X 35 mm (1.38 in.)
Refer to host controller for this dimension .
NOTE: All dimensions
are in mm (inches).
Hole spacing
tolerance: ±0.4 mm
(0.016 in.)

Allen-Bradley micrologix 1500 Specifications

General

Processor Type	16-bit
Programming Language	Ladder Logic
Mounting	DIN rail or panel mount
Programming Software	RSLogix 500
Communication Ports	RS-232
Power Supply	24V DC
Operating Temperature	0°C to 55°C (32°F to 131°F)
Controller Type	Programmable Logic Controller (PLC)
