4-22 Communication Connections
Connecting to DeviceNet
You can connect a MicroLogix 1500 using DF1 Full-Duplex protocol to
a DeviceNet network using the DeviceNet Interface (DNI), catalog
number 1761-NET-DNI. For additional information on using the DNI,
refer to the DeviceNet Interface User Manual, publication 1761-6.5.

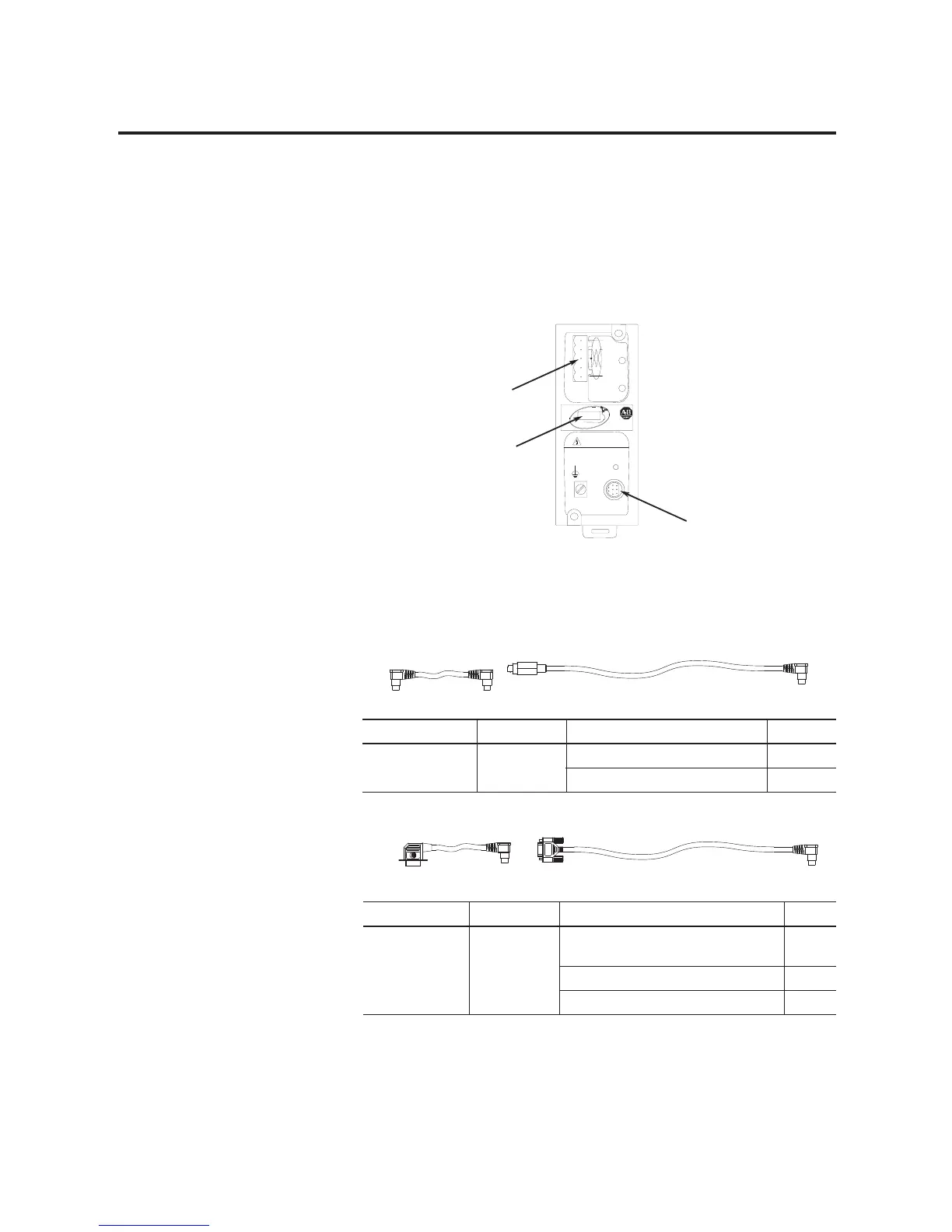

The following figure shows the external wiring connections of the
DNI.
Cable Selection Guide
Cable Length Connections from to DNI
1761-CBL-AM00
1761-CBL-HM02
45 cm (17.7 in)
2m (6.5 ft)
MicroLogix 1000 port 2
MicroLogix 1500 port 2
Cable Length Connections from to DNI
1761-CBL-AP00
1761-CBL-PM02
45 cm (17.7 in)
2m (6.5 ft)
SLC 5/03 or SLC 5/04 processors,
channel 0
port 2
PC COM port port 2
1764-LRP processor, channel 1 port 2
V–
CAN_L
SHIELD
CAN_H
V+
NET
MOD
NODE
DANGER
GND
TX/RX
DeviceNet Node (Port 1)
(Replacement connector
part no. 1761-RPL-0000)
Use this write-on
area to mark the
DeviceNet node
address.
RS-232 (Port 2)
1761-CBL-AM00
1761-CBL-HM02
1761-CBL-AP00
1761-CBL-PM02
