Communication Connections 4-13
Communication Cable Connection to the DH-485 Connector
Single Cable Connection

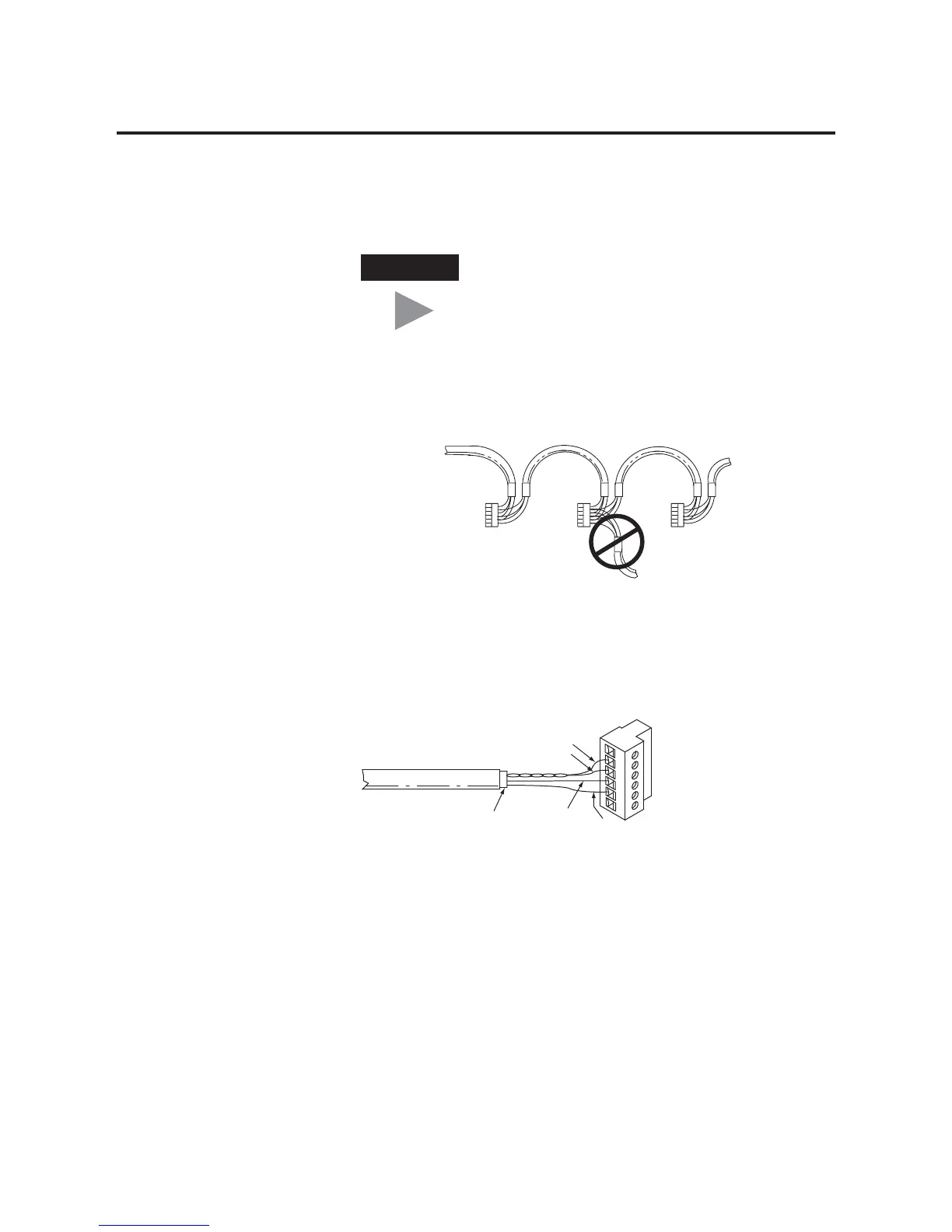

When connecting a single cable to the DH-485 connector, use the
following diagram.
TIP
A daisy-chained network is recommended.
We do not recommend the following:
Belden #3106A or #9842
Connector
Connector
Connector
Incorrect
Orange with White Stripes
White with Orange Stripes
Shrink Tubing Recommended
Blue (#3106A) or
Blue with White
Stripes (#9842)
Drain/Shield
6 Termination
5 A
4 B
3 Common
2 Shield
1 Chassis Ground
