Allen-Bradley micrologix 1500

Publication 1764-UM001B-EN-P - April 2002
4-4 Communication Connections
Channel 0

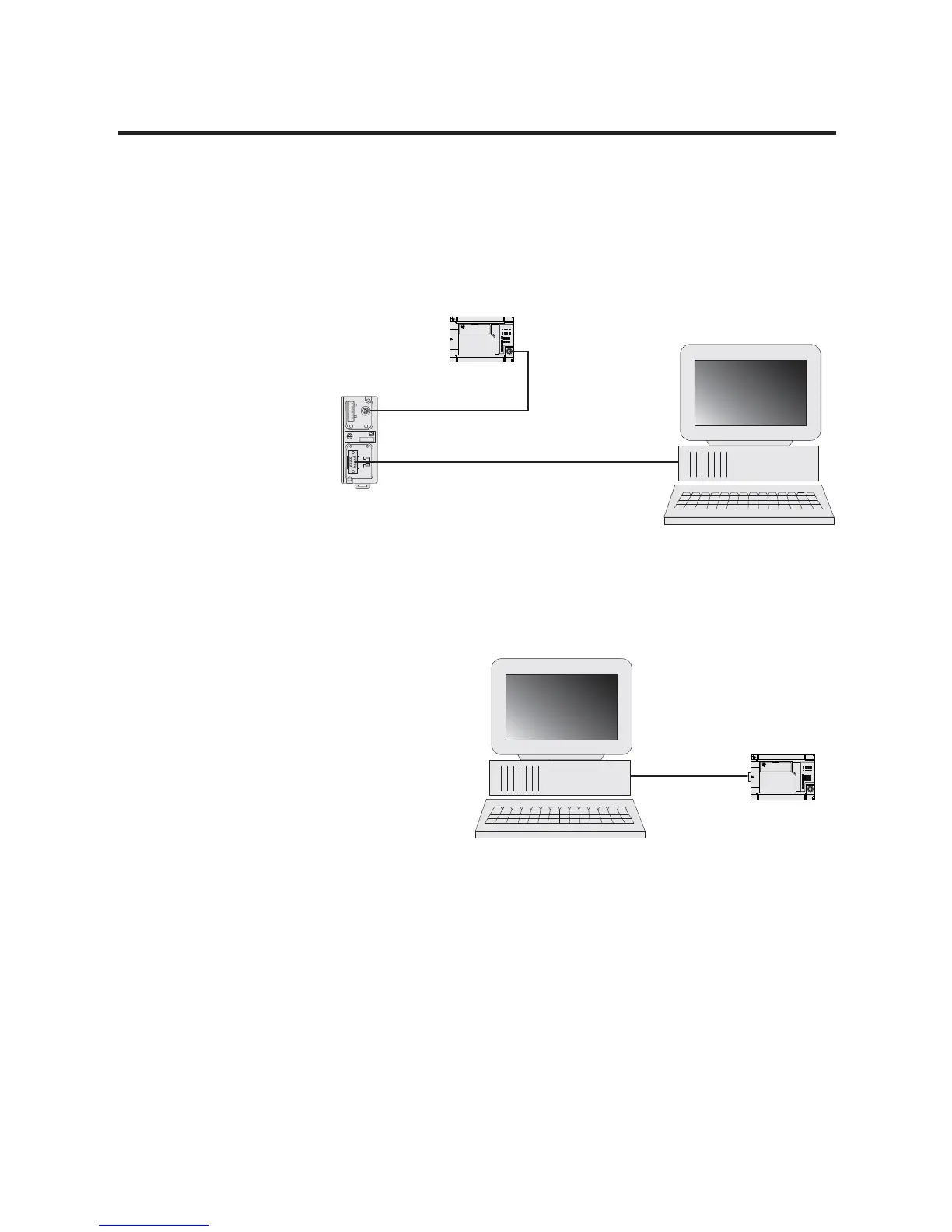

We recommend using an Advanced Interface Converter (AIC+),
catalog number 1761-NET-AIC, or similar optical isolator, as shown
below. See page 4-16 for specific AIC+ cabling information.
Channel 1
TERM
A
B
COM
SHLD
CHS GND
TX
TX PWR
TX
DC SOURCE
CABLE
EXTERNAL
1761-CBL-AM00
or 1761-CBL-HM02
1747-CP3 or 1761-CBL-AC00
MicroLogix 1500 with 1764-LSP
or 1764-LRP processor
24V dc
MicroLogix 1500 provides power
to the AIC+ or an external power
supply may be used.
Personal Computer
Personal Computer
1747-CP3
MicroLogix
1500 Controller
with 1764-LRP
processor
