Configure the Adapter for Direct Connection in RSLogix 5000 Software 31

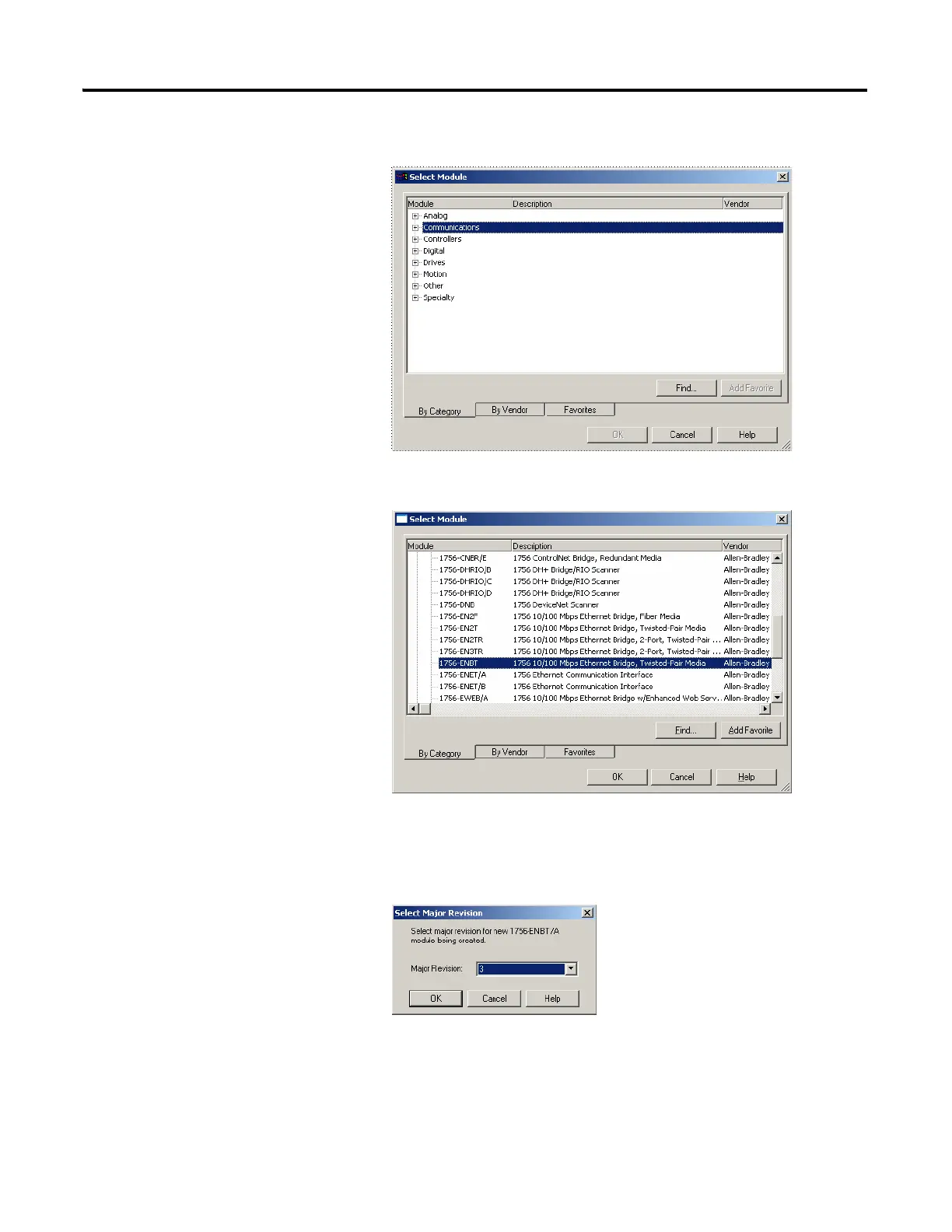

The Select Module dialog opens.
3. Expand the Communications tree as in the following dialog.
4. Select the 1756-ENBT EtherNet/IP Bridge and click OK.
The Select Major Revision dialog opens.
5. Select the number for Major Revision and click OK.

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
