32 Configure the Adapter for Direct Connection in RSLogix 5000 Software

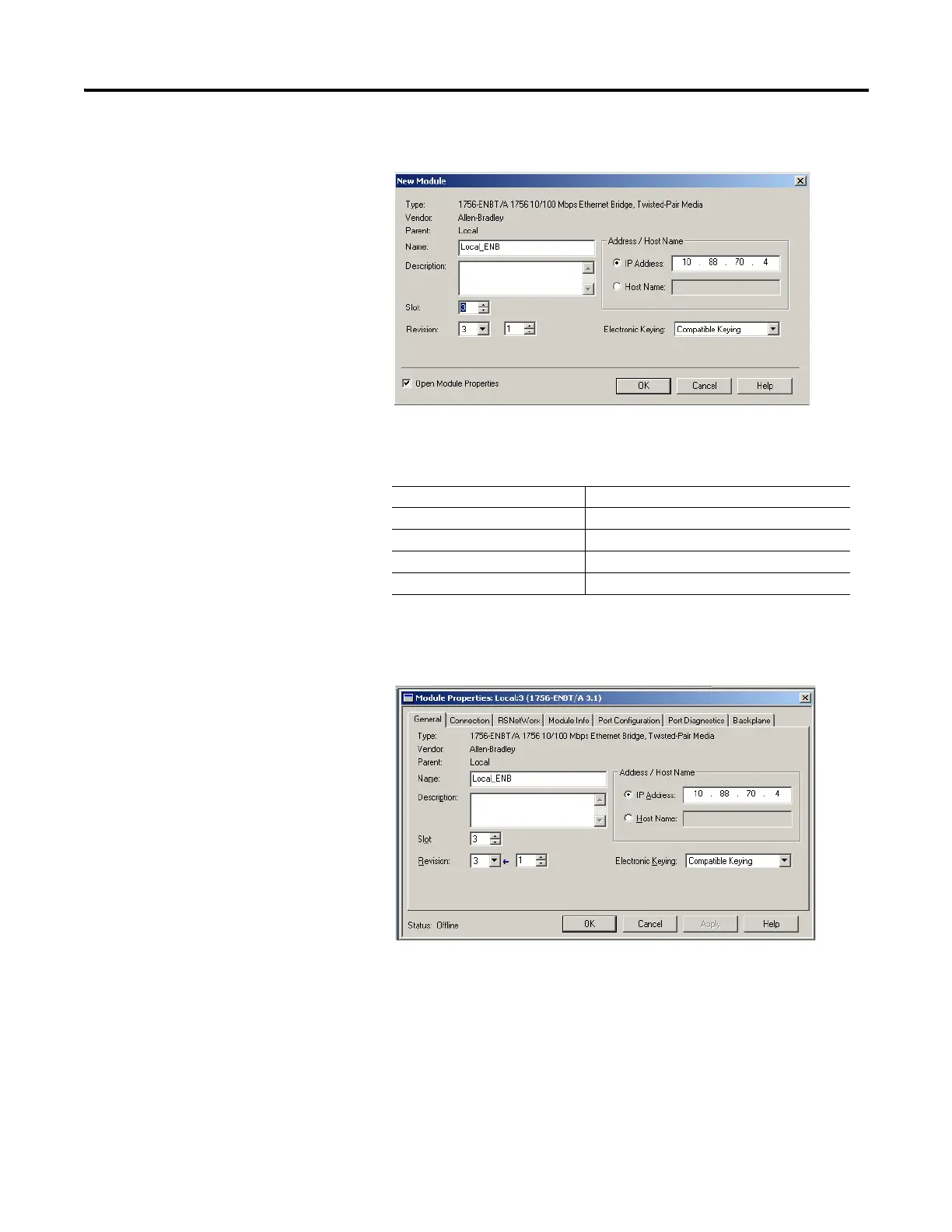

The New Module dialog opens.
6. Enter values for Name, IP Address, Slot, Electronic Keying, and
Revision, noting that we used the following values:
7. Click OK to accept the configuration.
The Module Properties dialog opens.
Name Local_ENBT
IP Address 10.88.70.4
Slot 3
Electronic Keying Compatible Keying
Revision 3.1

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
