Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software 55

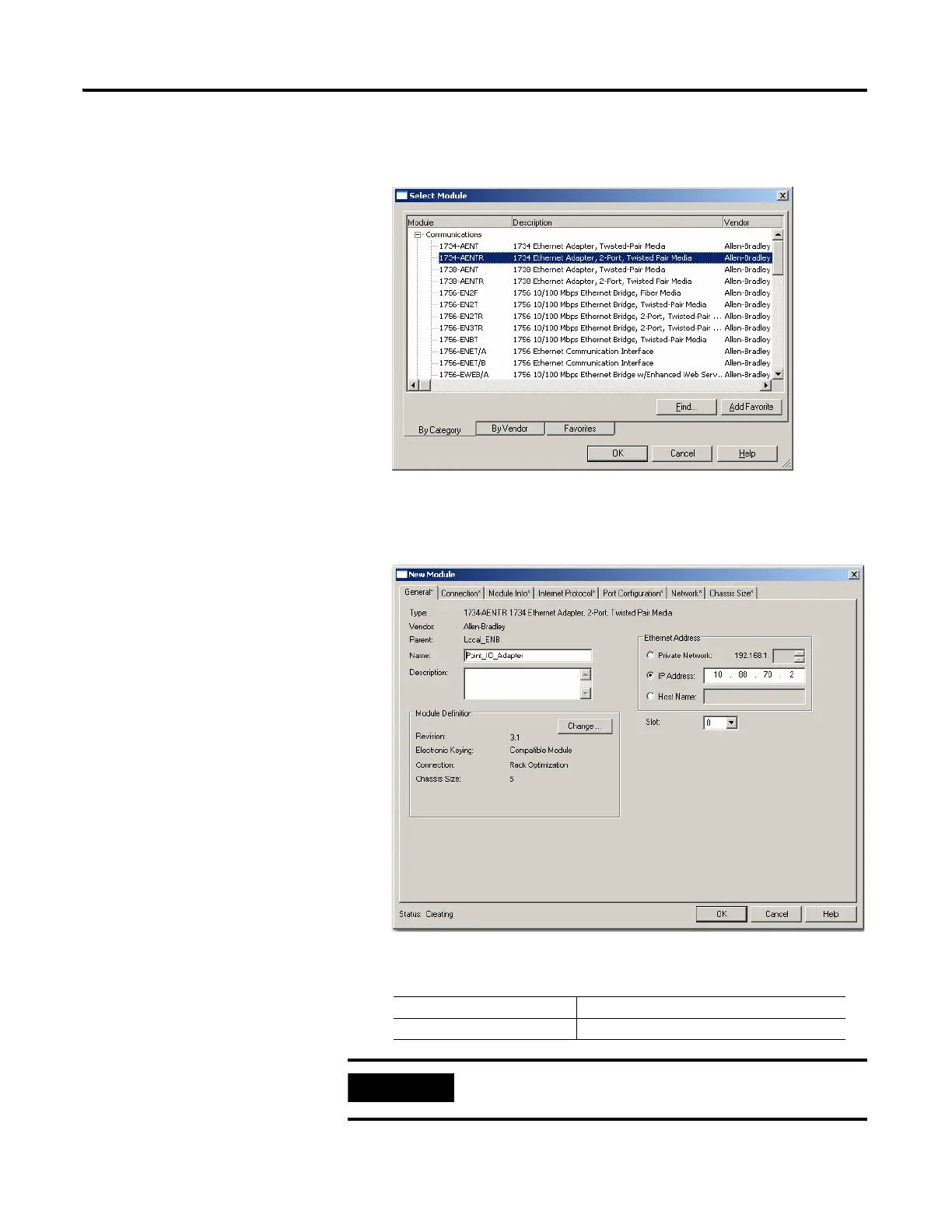

2. Expand the Communications tree and select the 1734-AENTR
Ethernet Adapter from the list.
3. Click OK.
The New Module dialog opens.
4. Enter values for Name and IP Address, noting we used the following
values.
Name POINT_IO_Adapter
IP Address 10.88.70.2
IMPORTANT
The Slot field appears grey because the slot is automatically 0 for
the I/O adapter.

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
