Mechanical Installation 4-3
Rockwell Automation Publication 22C-IN002E-EN-P - November 2010

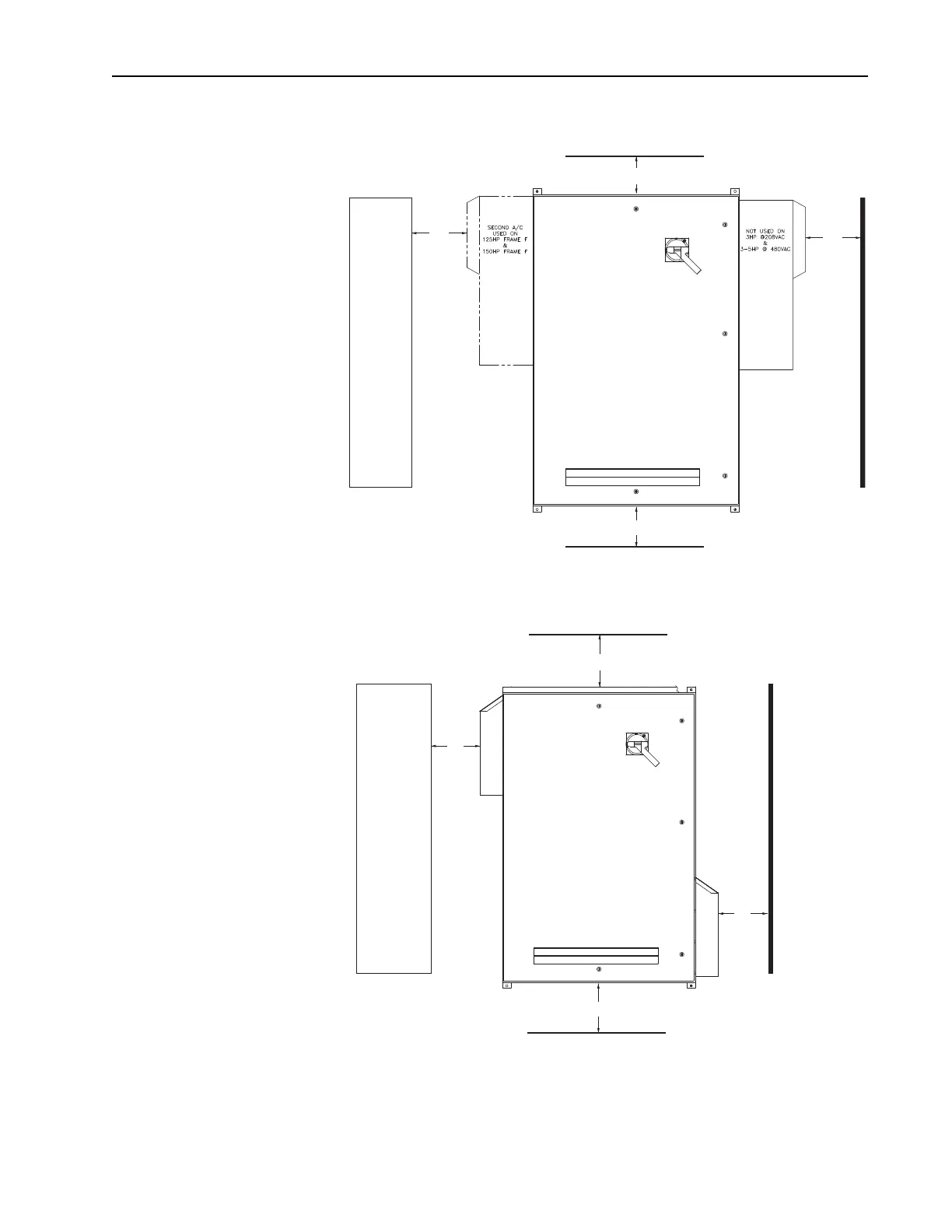

Figure 4.3 NEMA/UL Type 4 Minimum Mounting Clearances
Figure 4.4 NEMA/UL Type 3R Minimum Mounting Clearances
Drive or
other device
12.0"
12.0"
6.0"
6.0"
Drive or
other device
2.0"
2.0"
2.0"
2.0"
