B-14 Accessories and Dimensions

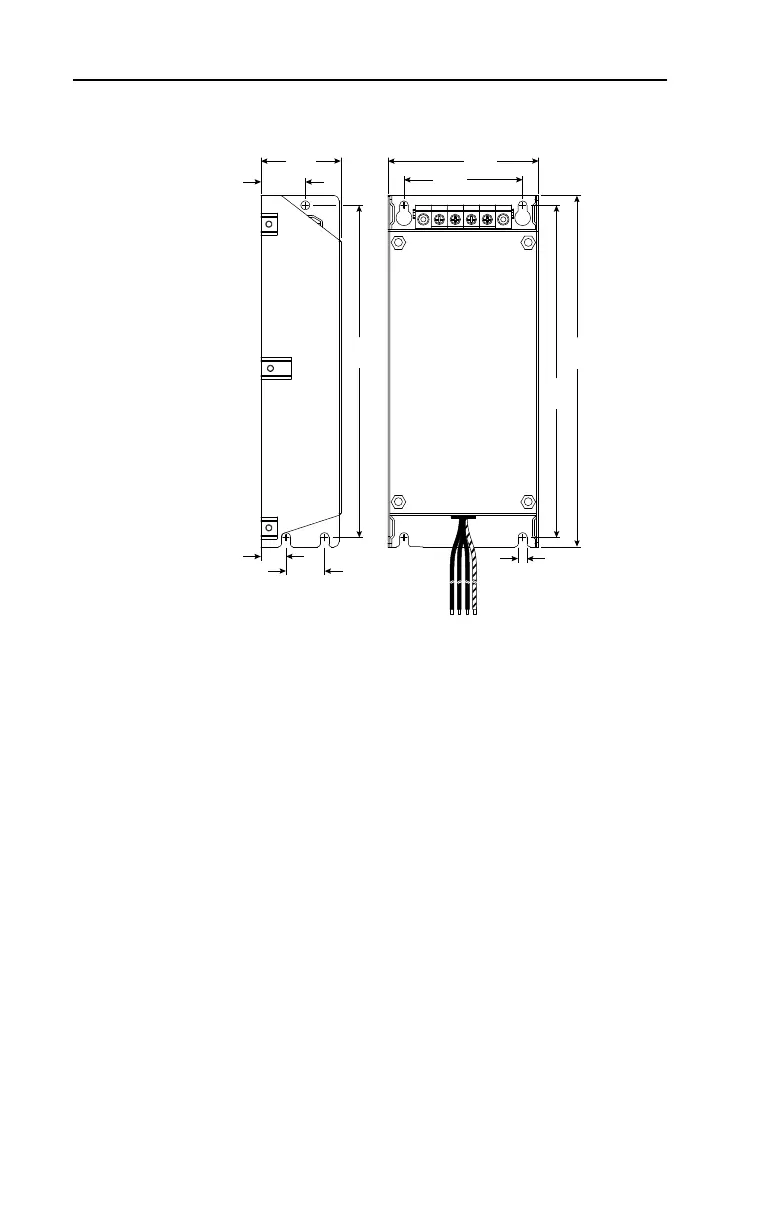

Figure B.9 Frame B EMC Line Filters – Dimensions are in millimeters and (inches)
Catalog Numbers: 22-RF0P8-BL; 22-RF012-BS, -BL (Series B); 22-RF021-BS, -BL
5.5 (0.22)
17.8
(0.70)
24.0
(0.94)
78
(3.07)
100
(3.94)
50
(1.97)
29.8
(1.17)
229
(9.02)
216
(8.50)
217
(8.54)
