Fiber Optic Interface Board

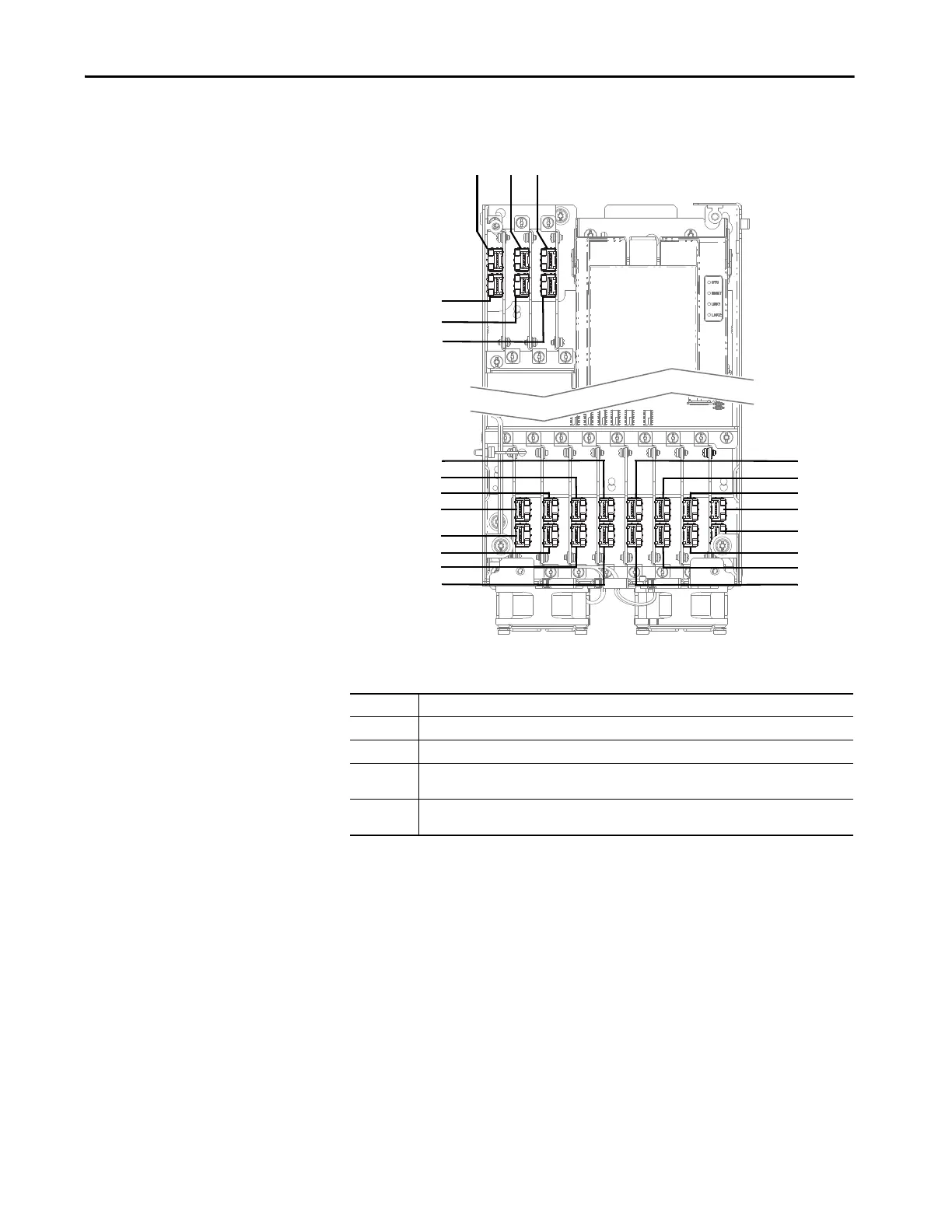

The fiber-optic interface board holds the fiber transceiver circuit boards.
Table 22 - Fiber Transceiver Circuit Board Connections
Por t N a m e D e s c r i pt ion
ACP0 Fiber transceiver port for the fiber-optic connection from ACP on the AC precharge control board.
ACP1 TAM Fiber transceiver port for the fiber-optic connection from TAM on the torque accuracy module.
L0…L9 Fiber transceiver ports for the fiber-optic connections from CNTL on the power layer interface board
in power modules that are used as line side converters.
M0…M9 Fiber transceiver ports for the fiber-optic connections from CNTL on the power layer interface board
in power modules that are used as motor side inverters.
ACP0 L0 L1
ACP1 / TAM
M0
M1
L8
L6
L4
L2
L9
L7
L5
L3
M2
M4
M6
M8
M3
M5
M7
M9
