Allen-Bradley PowerFlex 755T Installation Instructions

Rockwell Automation Publication 750-IN100B-EN-P - July 2017 55
Prepare for Installation Chapter 3

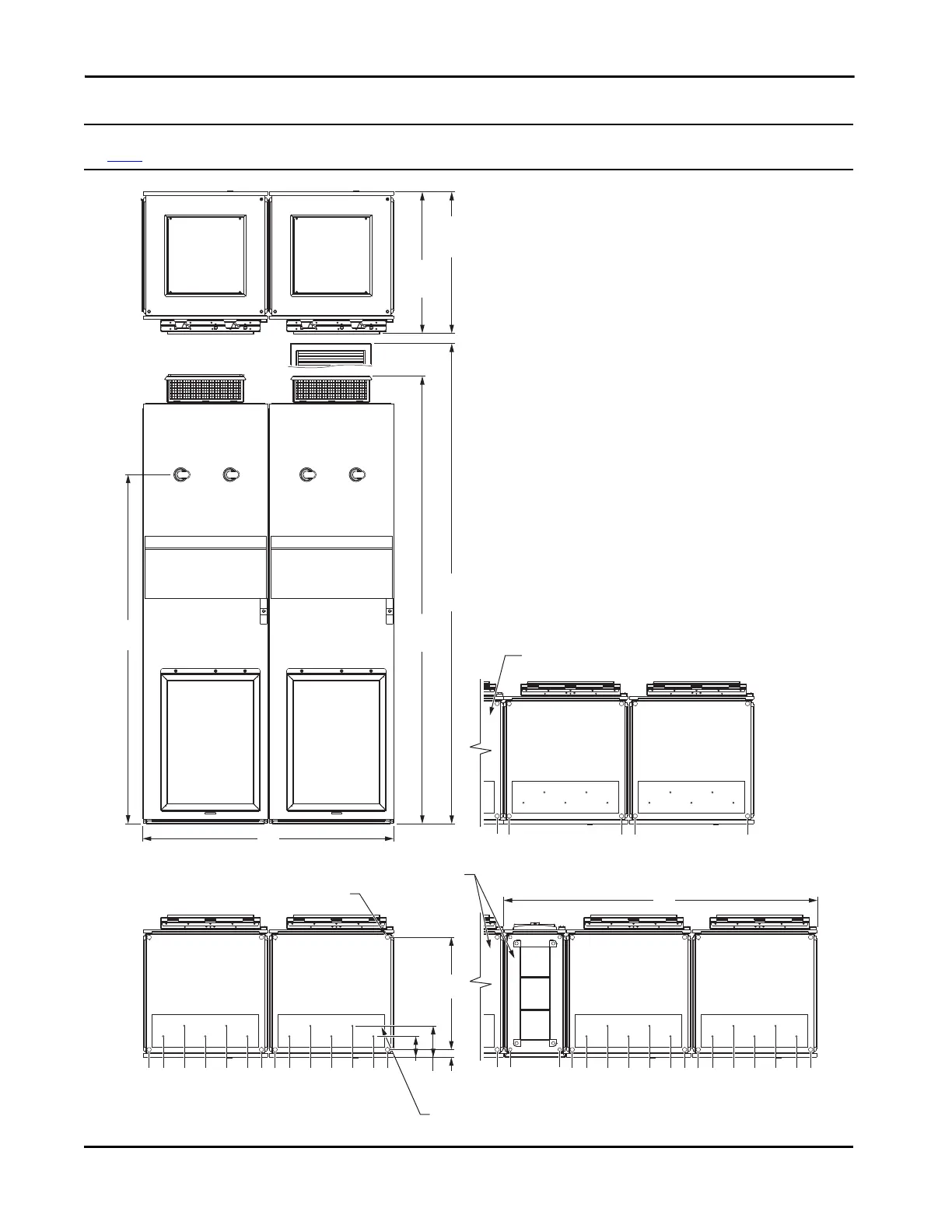

Frame 11 Top, Front, and Bottom Views - Dimensions are mm (in.)
See page 57
for optional exit wire bay dimensions.
65 (2.6)
65 (2.6)
0 (0)
235 (9.3)
68 (2.7)
168 (6.6)
268 (10.6) 368 (14.5) 468 (18.4) 868 (34.2) 968 (38.1)
1068 (42.0)
768 (30.2) 668 (26.3)
0 (0)
1135 (44.7)
600 (23.6)
535 (2.1)
1661
(65.4)
300 (11.8)
1435 (56.5)
900 (35.4) 835 (32.9)
0 (0)
1135 (44.7)
600 (23.6)
535 (2.1)
368 (2.7) 468 (6.6)
568 (10.6) 668 (14.5) 768 (18.4)
968 (38.1)
1068 (42.0) 1168 (46.0) 1268 (49.9) 1368 (53.9)
IP21, UL Type 1
2132
(83.9)
IP54, UL Type 12
2291
(90.2)
IP21, UL Type 1
676
(26.6)
IP54, UL Type 12
721
(28.4)
1200
(47.2)
1500
(59.0)
36
(1.4)
150
(5.9)
105
(4.1)
535
(21.1)
Adjacent enclosure
Adjacent enclosure and control bay
Mounting Holes
Motor Cables - Bottom Exit
(Plate is marked with recommended gland or conduit hole pattern.)
Power BayPower Bay
