Rockwell Automation Publication 750-IN100B-EN-P - July 2017 93
Mechanical and Electrical Installation Chapter 4

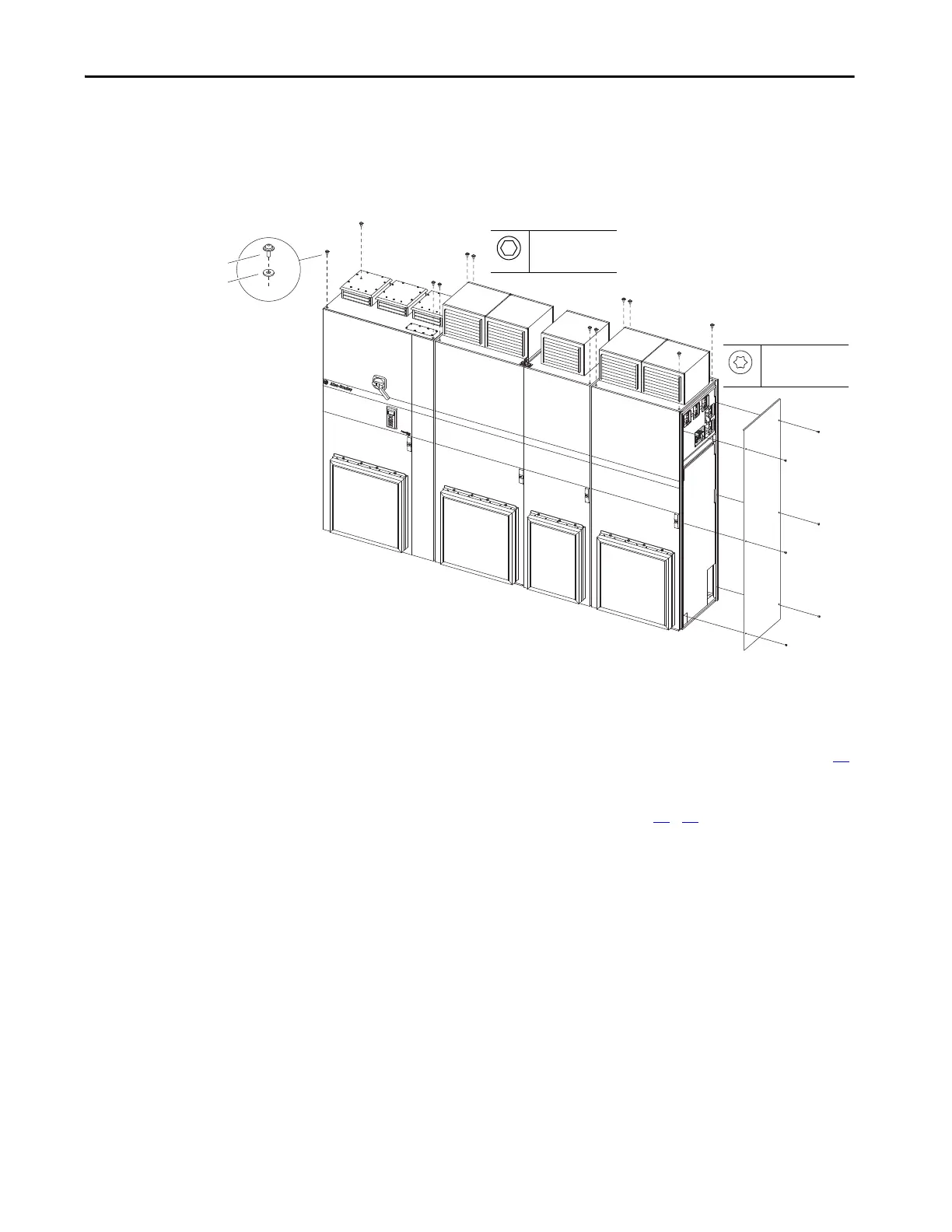

Secure and Seal Roof Panels and Side Sheet
1. Use the M12 screws with integral paint-piercing rubber washers to
secure and seal the roof panels.
2. Use the M6 screws to secure the side sheet removed from the input bay.
Affix the Enclosures to the
Floor
Use one of the mounting methods described in Mounting Options on page 35
to secure the enclosures to the mounting surface.
The approximate dimension drawings on pages 39
…57 show conduit openings
and mounting holes.
M12
19 mm
20 N•m (177 lb•in)
M6
T20
4.8 N•m (42 lb•in)
M12 Screw
Paint-piercing Washer
