Chapter 4 Mechanical and Electrical Installation

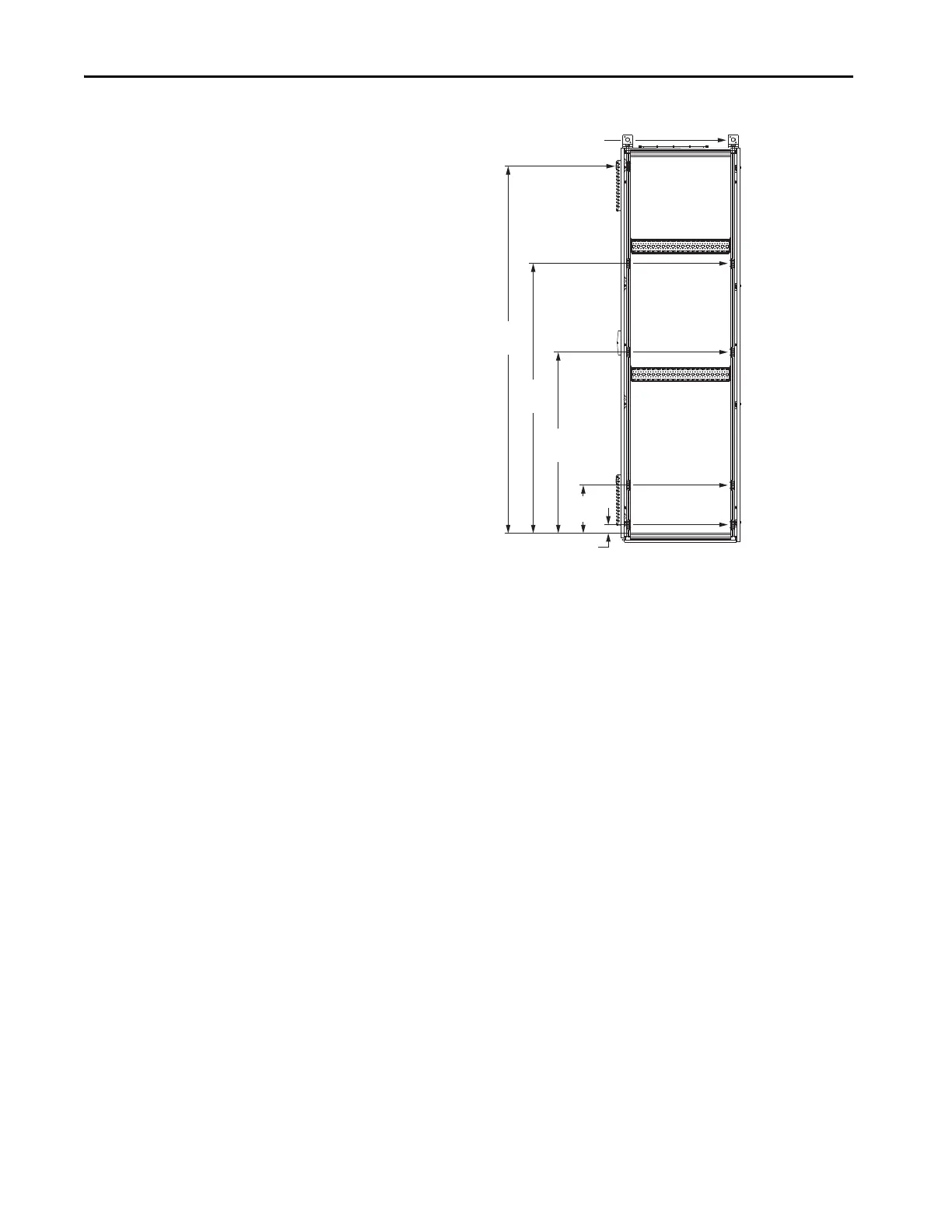

Figure 47 - Bracket Spacing
1368 mm
(53.9 in.)
918 mm
(36.1 in.)
1869 mm
(73.6 in.)
243 mm
(9.6 in.)
43 mm
(1.7 in.)
Top Bracket Sets
Frame Clamps
Install top clamp on door
side of the enclosure only.
Enclosure Back Side
