MMCR18 Media Converter Chassis Installation Guide
14
Introduction
The MMCR18 rack-mount chassis provides rack-mount or desktop
installation for up to 18 MMC series media converters. The chassis is
available in both AC and DC power supply units to install.
Figure 1 shows a fully populated chassis with rack-mount brackets
attached. All products are connected to power through the power supply
and power backplane of the chassis.

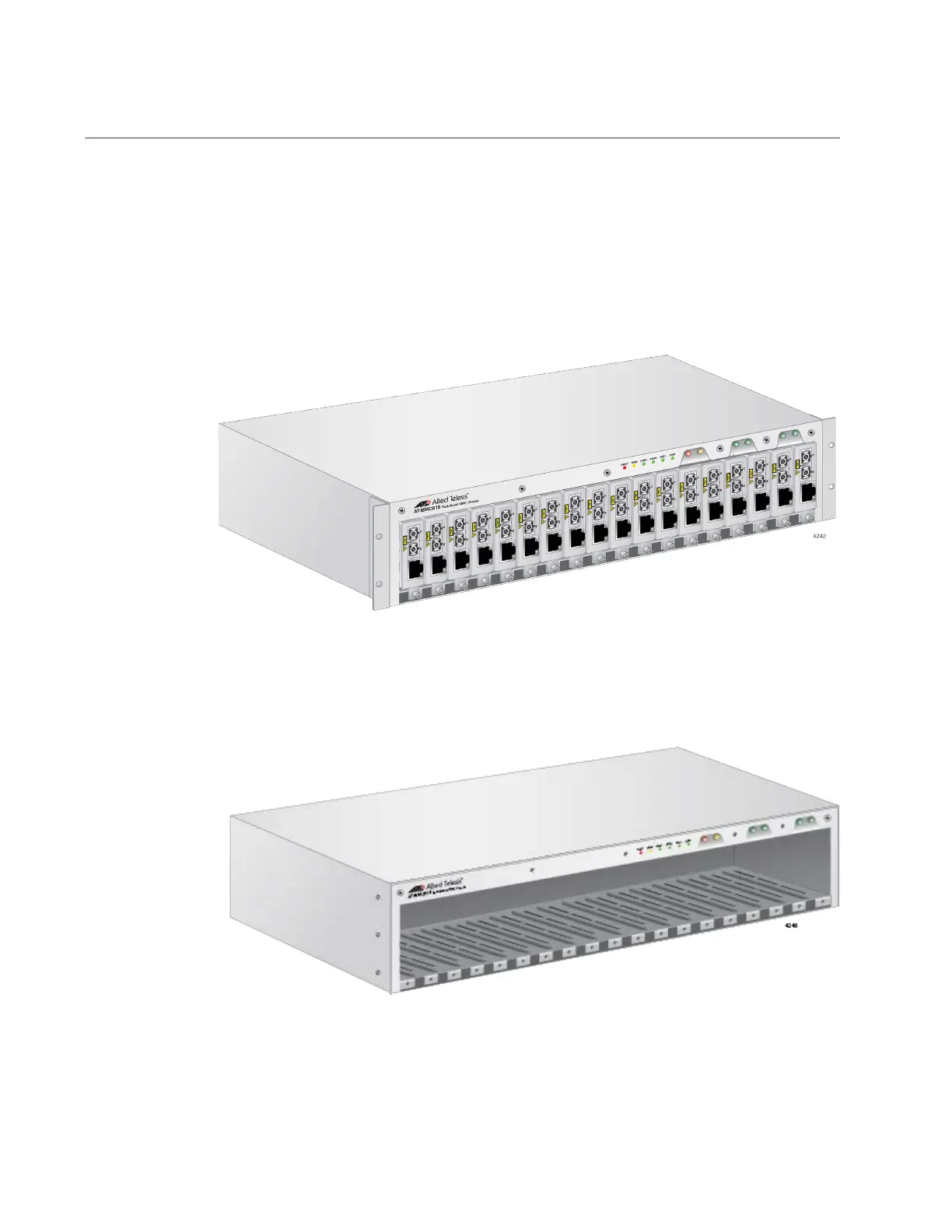

Figure 1. Full Populated MMCR18 Chassis with Rack-mount Brackets
Attached
Front Panel Figure 2 shows the front panel of the MMCR18 chassis.
Figure 2. MMCR18 Front Panel
The LEDs on the front provide information about the status of the system,
chassis temperature, power supplies, and fan installed in the rear. For
more information, see “LEDs” on page 17.
