4. Slide the media converter assembly into the chassis as shown in
Figure 17.

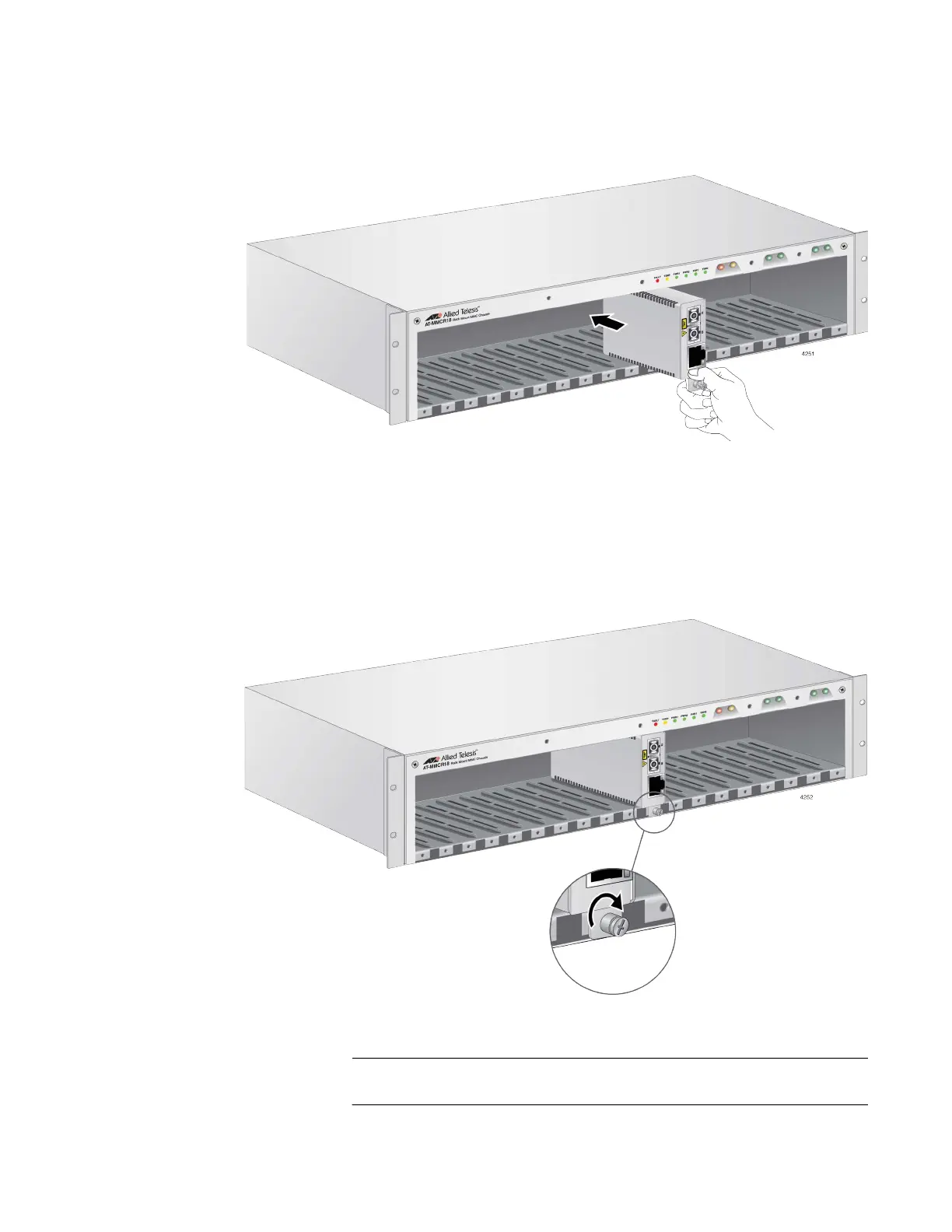

Figure 17. Installing the Media Converter in the Chassis
5. Gently press the media converter to seat the power connector into the
backplane.
6. Tighten the captive screw on the sliding carrier to secure the media
converter assembly in the chassis as shown in Figure 18 on page 37.
.
Figure 18. Tightening the Captive Screw on the Sliding Carrier
Note
If you have more media converters to install, repeat this procedure.
