Chapter 2: Installation

Removing the Cover Plate from the Chassis

The chassis is shipped with the cover plate installed. Before installing

media converters into the slots, remove the cover plate from the chassis.

To remove the cover plate, perform the following procedure:

Note

You must provide a Phillips-head screwdriver.

1. Face the front panel of the chassis as shown in Figure 11.

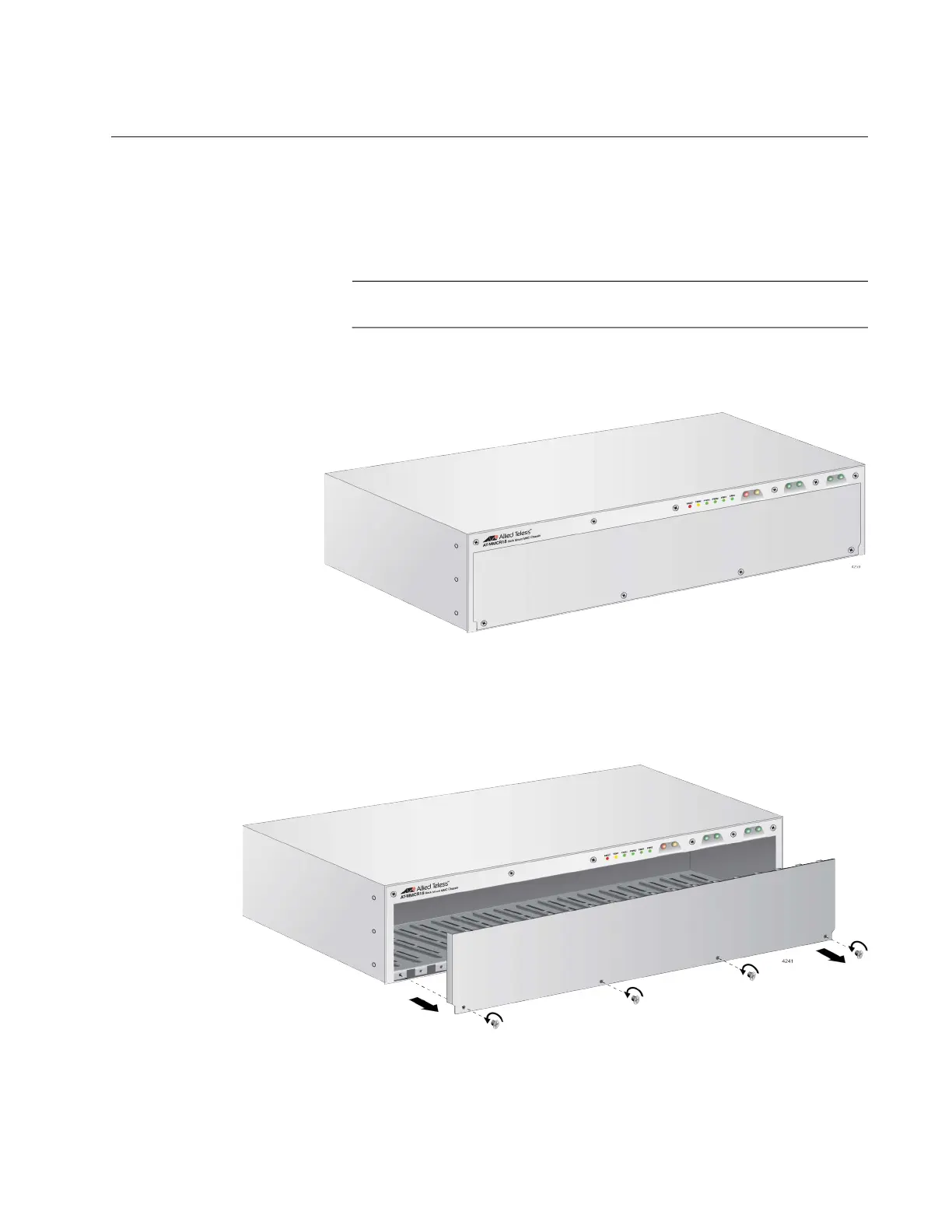

Figure 11. Front Panel with the Cover Panel

2. Untighten the four screws at the lower side of the cover panel using a

Phillips-head screw driver and remove the cover panel See Figure 12.

Figure 12. Removing the Cover Panel
