Chapter 2: Installation
31
Installing the Power Supply Unit into the Chassis
To install the power supply unit into the chassis, perform the following
procedure:
Note
You must provide a Phillips-head screwdriver.
1. Face the back panel of the chassis as shown in “Back Panel” on
page 31

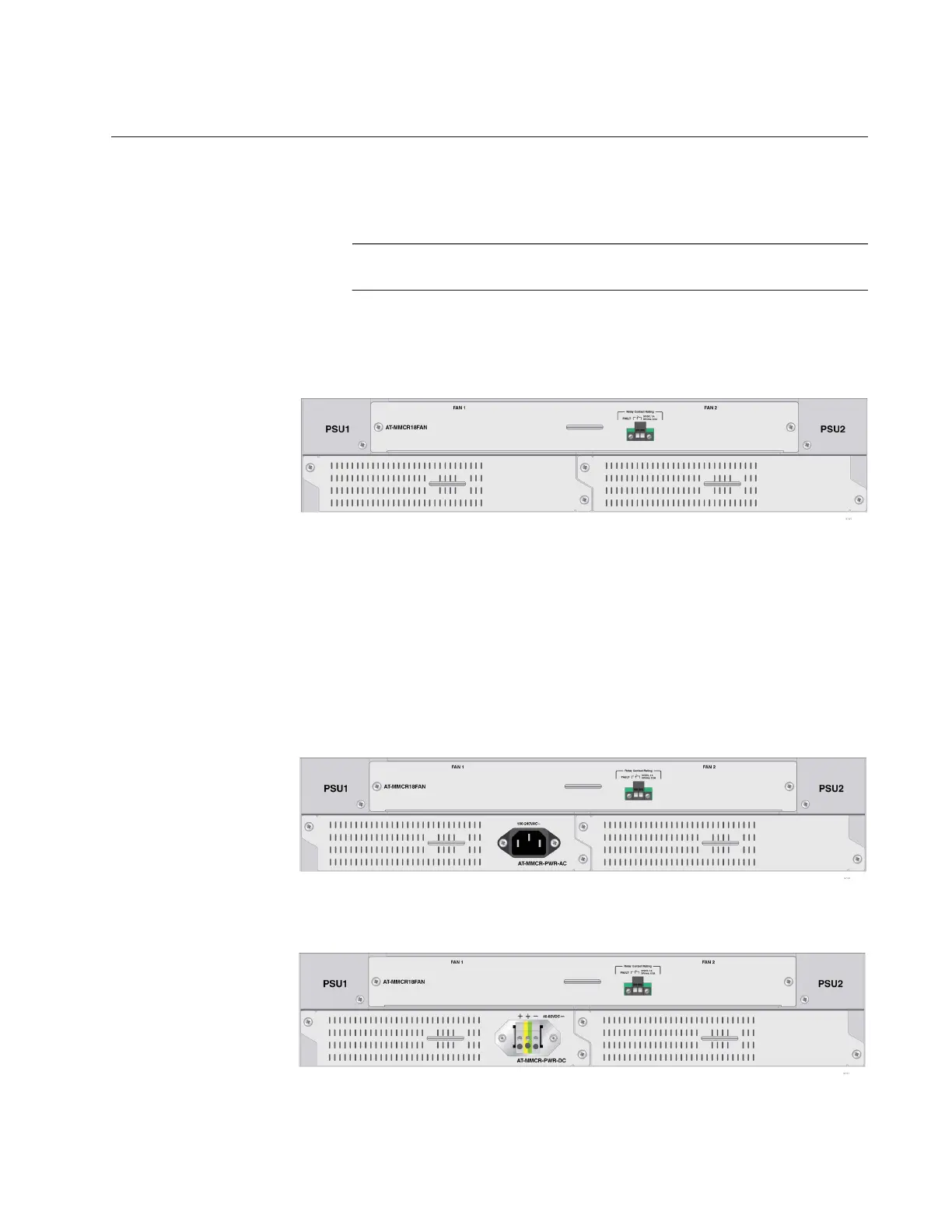

Figure 7. Back Panel
2. Untighten the screws on the blank panel in Slot A using a Phillips-head
screw driver and remove the blank panel.
3. Insert the power supply unit into the power supply slot A. See Figure 8
for the AC power supply unit and Figure 9 on page 31 for the DC
power supply unit.
Figure 8. Inserting the AC Power Supply Unit into Slot A
Figure 9. Inserting the DC Power Supply Unit into Slot A
Power Supply Slot B
Power Supply Slot A
