MMCR18 Media Converter Chassis Installation Guide
36
Installing a Media Converter in the Chassis
To install a media converter in theMMCR18 chassis, perform the following
procedure.
Note
You must provide a Phillip-head screwdriver.
1. Align the sliding carrier on the media converter as shown in Figure 15.
Note
Ensure that the orientation is correct when attaching the sliding
carrier to the media converter.

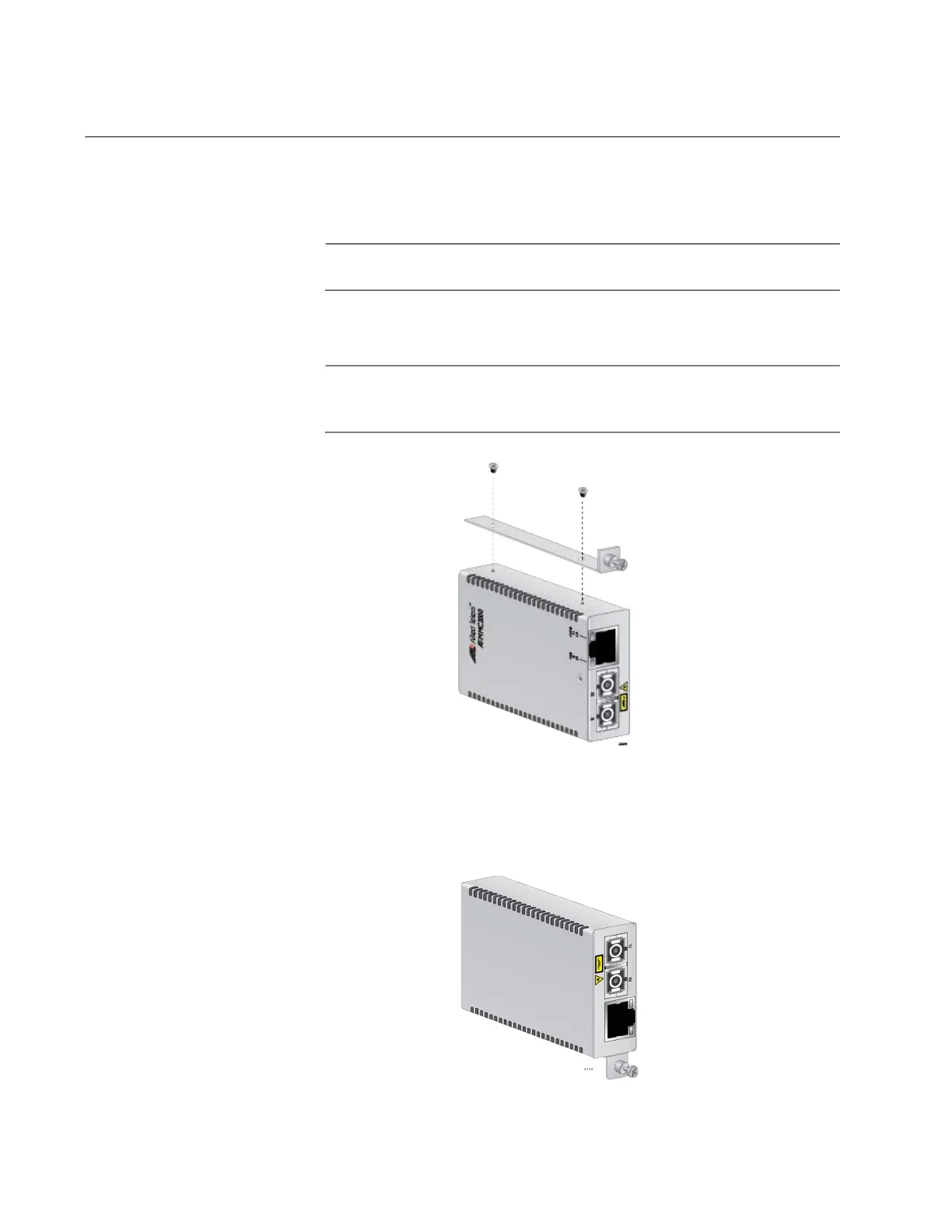

Figure 15. Attaching the Sliding Carrier on a Media Converter
2. Tighten two screws to attach the sliding carrier and media converter.
3. Turn over the media converter as shown in Figure 16.
Figure 16. Media Converter on the Sliding Carrier
