MMCR18 Media Converter Chassis Installation Guide
38
Installing a Blank Panel
You can install up to 18 media converters in the MMCR18 chassis;
however, you might not need all the slots. In the case, you can cover the
slots not in use by installing blank panels.
Note
Allied Telesis recommends covering empty slots with blank panels.
To install a blank panel in theMMCR18 chassis, perform the following
procedure.
Note
You must provide a Phillips-head screwdriver.
1. Prepare the number of blank panels that you need.
2. Hook the top of the blank panel into the top of the empty slot and cover
the slot with the panel. See Figure 19.

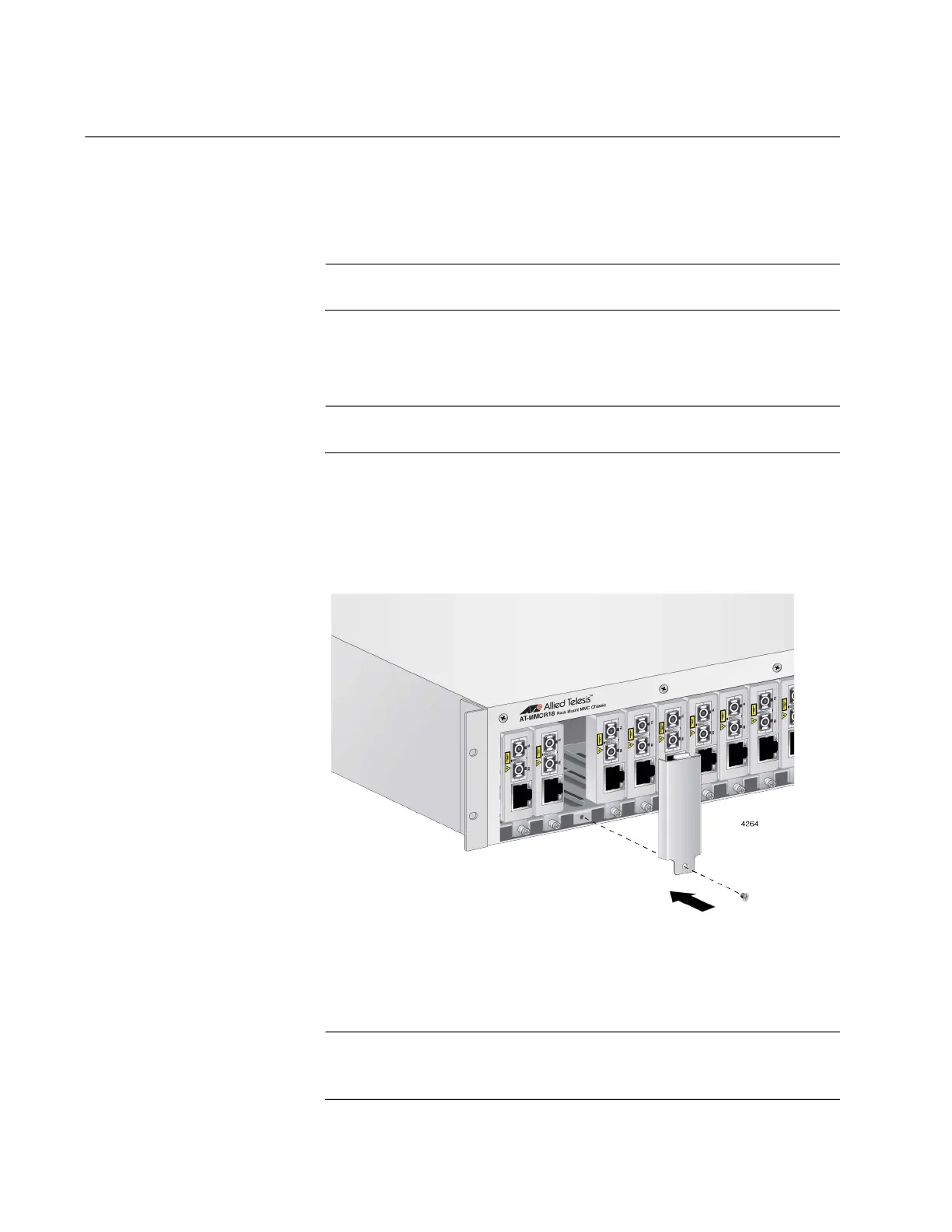

Figure 19. Installing the Blank Panel to Cover an Empty Slot
3. Tighten the captive screw on the blank panel to secure it in the
chassis.
Note
If you have more empty slot to install blank panels, repeat Step 2 to
Step 3.
