MMCR18 Media Converter Chassis Installation Guide
32
4. Tighten the screws on the power supply unit.
5. If you install another power supply unit, remove the blank panel from
Slot B and insert the second power supply unit into Slot B. See
Figure 10.
Note
You can install two AC power supply units, two DC power supply
units, or the combination of one AC and one DC power supply units.

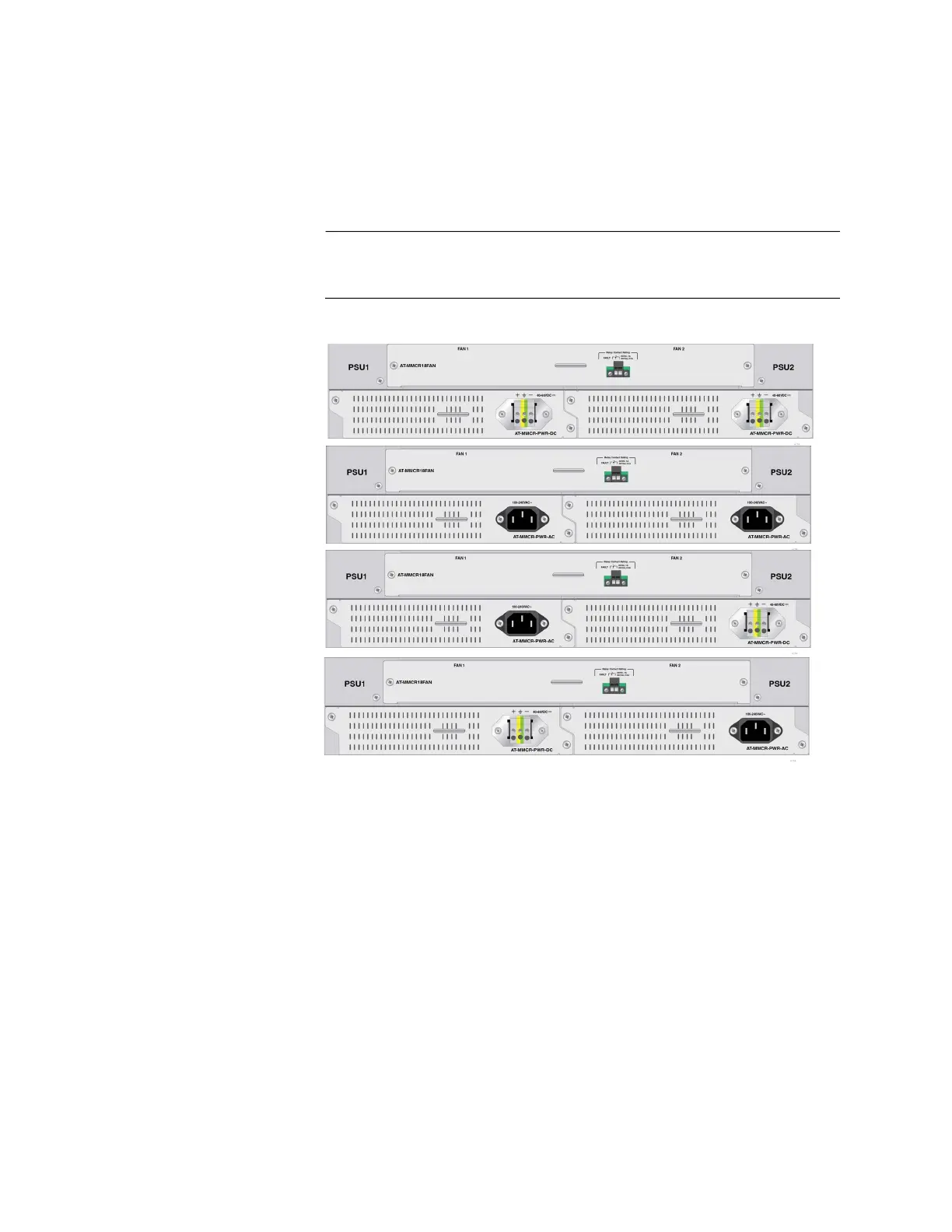

Figure 10. Combinations of Two Power Supply Units
6. Tighten the screws on the power supply unit.
7. Go to “Removing the Cover Plate from the Chassis” on page 33.
